GENOA SYSTEMS CORPORATION

WINVGA VIDEO 8540PCI

Card Type

Video card

Video Chip Set

Genoa Systems

Maximum Video Memory

2MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

720 x 400

Data Bus

32-bit PCI

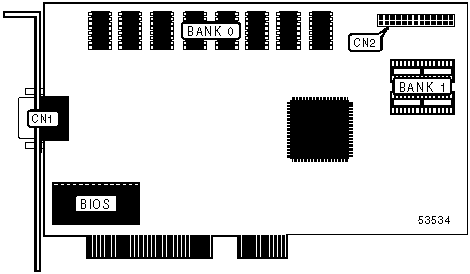

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

1MB

(8) 128KB

None

2MB

(8)128KB

(2) 512KB
