Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	Unidentified
Maximum Video Memory	Unidentified
Data Bus	8-bit ISA
Video Types Supported	Monochrome, CGA, EGA

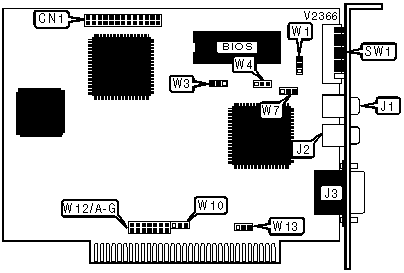

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	RCA jack (Non functional)	J2
RCA jack (Non functional)	J1	15-pin analog video port	J3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	W1	Pins 1 & 2 closed
»	EGA address is 3XXh	W3	Pins 1 & 2 closed
	EGA address is 2XXh	W3	Pins 2 & 3 closed
»	Factory configured - do not alter	W4	Open
»	Factory configured - do not alter	W7	Pins 1 & 2 closed
	Non maskable interrupt	W10	Pins 1 & 2 closed
	Interrupt selected	W10	Pins 2 & 3 closed
»	Card installed in other slot	W13	Pins 1 & 2 closed
	Card installed in XT-slot 8	W13	Pins 2 & 3 closed
»	Hercules emulation disabled	SW1/5	Off
	Hercules emulation enabled	SW1/5	On
»	Factory configured - do not alter	SW1/6	Off

INTERRUPT SELECTION
IRQ		W12/A	W12/B	W12/C	W12/D	W12/E	W12/F	W12/G
	2	Open	Open	Open	Open	Open	Closed	Open
	3	Closed	Open	Open	Open	Open	Open	Open
	4	Open	Closed	Open	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Open	Open
	6	Open	Open	Open	Closed	Open	Open	Open
	7	Open	Open	Open	Open	Closed	Open	Open
»	Disabled	Open	Open	Open	Open	Open	Open	Closed

VIDEO CONFIGURATION
Monitor		Mode	SW1/1	SW1/2	SW1/3
»	EGA	EGA 80 x 25	Off	On	On
	Mutli-sync	EGA 80 x 25	Off	On	On
	EGA	CGA 80 x 25	On	On	On
	CGA (A)	CGA 80 x 25	Off	Off	Off
	CGA (B)	CGA 40 x 25	On	Off	Off
	Monochrome	Monochrome	Off	Off	On

VIDEO CONFIGURATION (CON’T)
Monitor		Mode	SW1/4	SW1/7	SW1/8
»	EGA	EGA 80 x 25	Off	On	On
	Mutli-sync	EGA 80 x 25	Off	Off	On
	EGA	CGA 80 x 25	Off	On	On
	CGA (A)	CGA 80 x 25	On	On	Off
	CGA (B)	CGA 40 x 25	On	On	Off
	Monochrome	Monochrome	Off	Off	Off
