EVEREX SYSTEMS, INC.

EV-673 (PWA-00271-00)

Card Type

Video card

Video Chip Set

Unidentified

Highest Resolution Supported

Unidentified

Maximum Video Memory

None

Data Bus

8-bit ISA

Video Types Supported

Monochrome, CGA, EGA

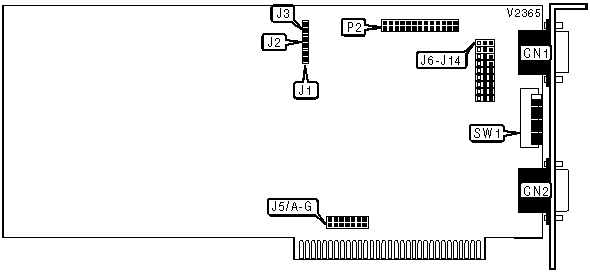

CONNECTIONS

Function

Label

Function

Label

9-pin TTL monitor connector (Out)

CN1

Auxiliary video extension

P2

15-pin analog video port

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J1

Closed

»

EGA address is 3XXh

J2

Closed



EGA address is 2XXh

J2

Open

»

Non maskable interrupt

J3

Closed



Interrupt selected

J3

Open

»

Hercules emulation disabled

SW1/5

Off



Hercules emulation enabled

SW1/5

On

»

Output signal is TTL

SW1/6

Off



Output signal is analog

SW1/6

On

INTERRUPT SELECTION

IRQ

J5/A

J5/B

J6/C

J5/D

J5/E

J5/F

J5/G



2

Open

Open

Open

Open

Open

Closed

Open



3

Open

Open

Open

Open

Closed

Open

Open



4

Open

Open

Open

Closed

Open

Open

Open



5

Open

Open

Closed

Open

Open

Open

Open



6

Open

Closed

Open

Open

Open

Open

Open



7

Closed

Open

Open

Open

Open

Open

Open

»

Disabled

Open

Open

Open

Open

Open

Open

Closed

SIGNAL OUTPUT CONFIGURATION

Setting

J6

J7

J8

J9

J10

Analog

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

TTL

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Note: Pins designated are in the closed position.

SIGNAL OUTPUT CONFIGURATION (CON’T)

Setting

J11

J12

J13

J14

Analog

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

TLL

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed
