ESCOM AG
VGA-CARD
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident TVGA9000 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

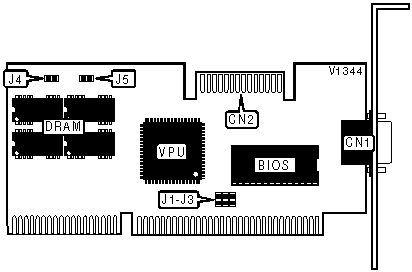

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
SCAN RATE CONFIGURATION |
||
|
Rate |
J5 |
|
|
» |
< 48.7KHz |
Closed |
|
|
³ 48.7KHz |
Open |
|
AUTODETECT CONFIGURATION |
||
|
Setting |
J4 |
|
|
» |
Enabled |
Open |
|
|
Disabled |
Closed |
|
BUS TYPE SELECTION |
||||
|
Type |
J1 |
J2 |
J3 |
|
|
» |
16-bit |
Open |
Open |
Open |
|
|
8-bit |
Closed |
Closed |
Closed |
