ELITEGROUP COMPUTER SYSTEMS, INC.

VI-710A

Category

Video

Video Types Supported

XVGA

Video Processor

ET4000

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2048KB

CONNECTIONS

Purpose

Location

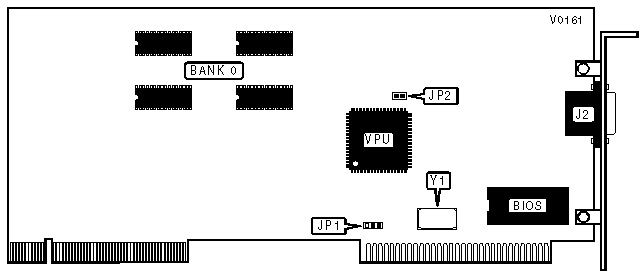

15-pin video analog port

J2

ATCLK SIGNAL SELECTION

ATCLK

JP1

»

Signal from ISA Bus

Pins 1 & 2 closed



Signal from Y1

Pins 2 & 3 closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

JP2

Open
