CARDEXPERT TECHNOLOGY, INC.

S3 TRIO64 V+ (VER. 3.2)

Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

4MB DRAM

Video Types Supported

VGA, SVGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit PCI

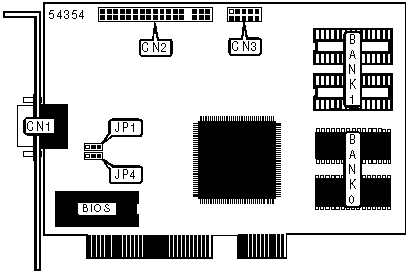

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Unidentified

CN3

LPB/Feature connector

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

IRQ2 enabled - MPEG daughterboard installed

JP1

Pins 1 & 2 closed

IRQ2 disabled

JP1

Pins 2 & 3 closed

Factory configured - do not alter

JP3

Unidentified

Factory configured - do not alter

JP4

Unidentified

Note: IRQ2 used when MPEG daughter card is installed.

MISCELLANEOUS TECHNICAL NOTES

Memory configuration is unidentified.
