DIAMOND MULTIMEDIA SYSTEMS, INC.

SPEEDSTAR 64 PCI (ALPINE)

Card Type

Video card

Video Chip Set

Cirrus Logic

Maximum Video Memory

2MB DRAM

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

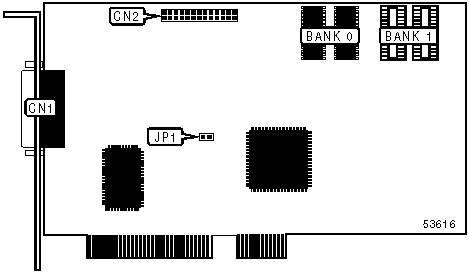

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

VESA 26-pin header

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

IRQ2 enabled

JP1

Closed



IRQ2 disabled

JP1

Open

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

1MB

(2) 512KB

None

2MB

(2) 512KB

(2) 512KB
