DELL COMPUTER CORPORATION

CG-100

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

Unidentified

Video Types Supported

Monochrome, CGA, MDA, HGC

Highest Resolution Supported

720 x 348

Data Bus

8-bit ISA

CONNECTIONS

Function

Label

Function

Label

9-pin digital video port

CN1

25-pin parallel port - external

CN2

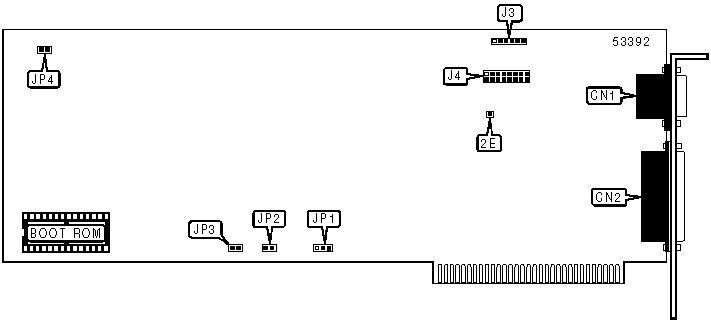

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter.

J3

Unidentified

»

Factory configured - do not alter.

J4

Unidentified

»

Printer enabled

JP2

Open



Printer disabled

JP2

Closed

»

Factory configured - do not alter.

JP4

Unidentified

»

Factory configured - do not alter.

2E

Unidentified

VIDEO MODE SELECT

Color/ Mono Select

JP1

JP3

»

Color enabled

Pins 2 & 3 closed

Open



Monochrome enabled

Open

Open
