DIAMOND FLOWER, INC.

WG-3120PV

Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

2MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

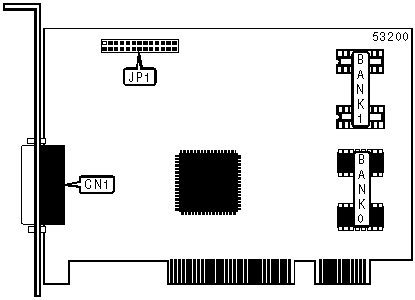

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

JP1

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256x16

None

2MB

(2) 256x16

(2) 256x16
