CARDEXPERT TECHNOLOGY, INC.

S3 VISION968 (VER.4.0)

Card Type

Video card

Video Chip Set

Cirrus Logic S3 Vision968

Highest Resolution Supported

1600 x 1200

Maximum Video Memory

4MB VRAM (2MB VRAM on memory expansion board)

Data Bus

32-bit PCI

Video Types Supported

XVGA

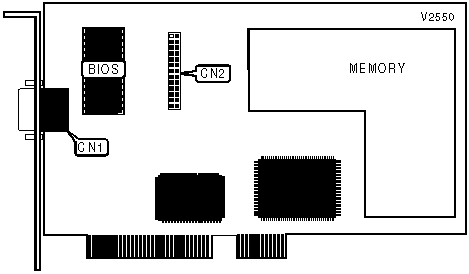

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

VRAM CONFIGURATION

Note: The VRAM chip size and configuration is unidentified.
