DIAMOND MULTIMEDIA SYSTEMS, INC.

STEALTH 64 GRAPHICS 2001 VLB

Card Type

Video card

Video Chip Set

ARK 2000PV

Highest Resolution Supported

Unidentified

Maximum Video Memory

2MB DRAM

Data Bus

32-bit VESA Local Bus

Video Types Supported

XVGA

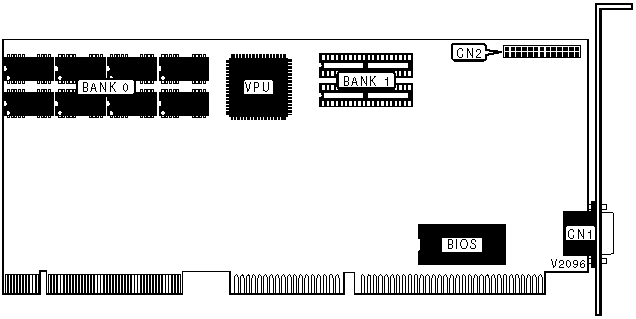

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

VESA feature connector

CN2

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(8) 256K x 4

None

2MB

(8) 256K x 4

(2) 256K x 16
