DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH 64DRAM VLB VER. 1
Category |
Video |
Video Types Supported |
XVGA |
Video Processor |
S3 Vision 864 |
Highest Resolution Supported |
1280 x 1024 |
Data Bus Type |
32-bit VESA Local Bus |
Memory Type |
DRAM |
Maximum Onboard Memory |
2048KB |

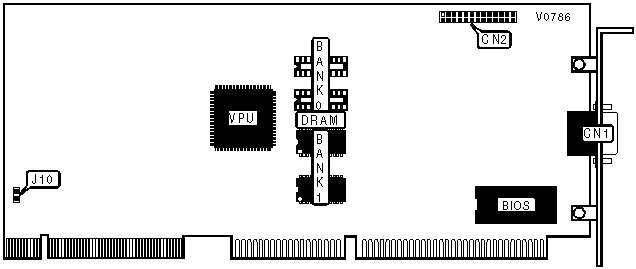

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
15-pin analog video port |
CN1 |
VESA Feature connector |
CN2 |
IRQ9 INTERUPT SELECTION | ||
IRQ9 |
J10 | |
» |
Enabled |
Closed |
Disabled |
Open |
DRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
1024KB |
(2) 441000 |
NONE |
2048KB |
(2) 441000 |
(2) 441000 |
