DIAMOND MULTIMEDIA SYSTEMS, INC.

SPEEDSTAR PRO

Category

Video

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

VRAM

Maximum Onboard Memory

1024KB

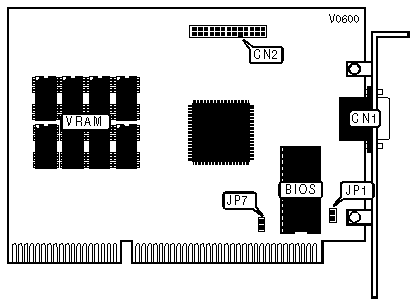

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA feature connector

CN2

IRQ2 CONFIGURATION

IRQ2

JP1

»

Enabled

Closed



Disabled

Open

ZERO WAIT STATE

Setting

JP7

»

Enabled

Closed



Disabled

Open
