COLORGRAPHIC COMMUNICATIONS CORPORATION

DUAL LIGHTNING

Category

Video

Video Types Supported

XVGA

Video Processor

ET4000

Highest Resolution Supported

1024 x 768

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

4096KB

CONNECTIONS

Purpose

Location

Purpose

Location

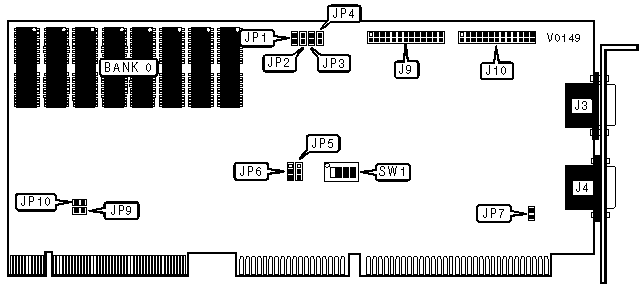

15-pin analog video port

J3

VGA feature connector

J9

15-pin analog video port

J4

VGA feature connector

J10

WAIT STATE SELECTION

Setting

JP1

JP2

»

4

Closed

Closed



3

Open

Closed



2

Closed

Open



1

Open

Open

BASE I/O ADDRESS SELECTION

Address

SW1/1

SW1/2

»

348h - 34Fh

Off

On



328h - 32Fh

Off

Off



338h - 33Fh

On

Off



358h - 35Fh

On

On

ADAPTER ID CONFIGURATION

ID

SW1/3

SW1/4

»

0

On

On



1

Off

On



2

On

Off



3

Off

Off

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

JP3

Closed

JP4

Closed

JP5

Closed

JP6

Closed

JP9

Closed

JP10

Closed
