DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH PRO
Category |
Video |
Video Types Supported |
XVGA |
Video Processor |
S3 89C928 |
Highest Resolution Supported |
1280 x 1024 |
Data Bus Type |
16-bit ISA |
Memory Type |
VRAM |
Maximum Onboard Memory |
2048KB |

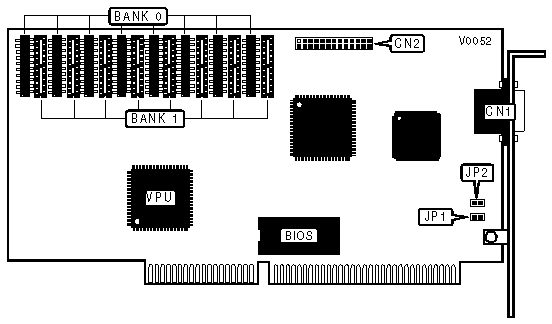

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
INTERRUPT SELECTION | ||
IRQ 2/9 |
JP1 | |
» |
Enabled |
Closed |
Disabled |
Open |
ZERO WAIT STATE SELECTION | ||
Setting |
JP2 | |
» |
Enabled |
Closed |
Disabled |
Open |
FACTORY CONFIGURED - DO NOT ALTER | |
Jumper |
Position |
JP3 |
N/A |
VRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
1024KB |
(8) 256K x 4 ZIP |
None |
2048KB |
(8) 256K x 4 ZIP |
(8) 256K x 4 ZIP |
