Category	Video
Video Types Supported	XVGA
Video Processor	S3801
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	1024KB

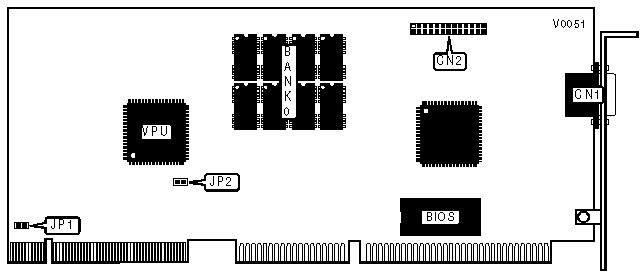

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

INTERRUPT SELECTION
IRQ 2/9		JP1
»	Enabled	Closed
	Disabled	Open

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Setting
JP2	N/A
