DIAMOND FLOWER, INC.

VG-7000

Category

Video

Video Types Supported

CGA/EGA/Monochrome/VGA/XVGA

Video Processor

OTI067/OTI077

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

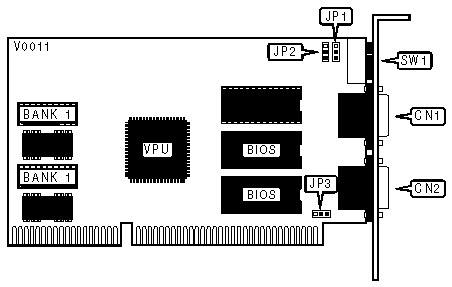

REFRESH RATE CONFIGURATION

Purpose

Location

Purpose

Location

15-pin analog video connector

CN1

9-pin digital video connector

CN2

REFRESH MODE SELECTION

Mode

JP1

»

Interlaced

Pins 1 & 2 closed



Non-Interlaced

Pins 2 & 3 closed

DATA BUS CONFIGURATION

Setting

JP2

»

16-bit data bus

Pins 1 & 2 closed



8-bit data bus

Pins 2 & 3 closed

INTERRUPT CONFIGURATION

IRQ 2/9

JP3

»

Disabled

Pins 2 & 3 closed



Enabled

Pins 1 & 2 closed

MONITOR TYPE CONFIGURATION

Type

SW1/1

SW1/2

SW1/3

SW1/4

»

VGA Color

Off

On

Off

On



MDA

Off

On

On

On



Pure MDA (no emulation)

On

Off

On

On



EGA

Off

Off

On

On



Pure EGA (no emulation)

On

On

Off

On



CGA

On

On

On

On



VGA Monochrome

On

Off

Off

On



IBM 85On4

Off

Off

Off

On



NEC 2A/Compatible

On

On

On

Off



NEC Multisync/Multisync

Off

On

On

Off



NEC XL/Compatible

On

Off

On

Off



NEC 3D/NEC+/Compatible

Off

Off

On

Off



NEC 4D/5D/Compatible

On

On

Off

Off



768 x On024 Portrait Monitor

Off

On

Off

Off



Reserved

Off

On

Off

Off



Reserved

Off

Off

Off

Off

FACTORY CONFIGURED - DO NOT ALTER

Switch

Position

SW1/5

Off

SW1/6

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

256KB

(2) 44256

None

512KB

(2) 44256

(2) 44256
