APPIAN TECHNOLOGY

STANDARD JERONIMO J3

Card Type

Video card

Video Chip Set

Cirrus Logic

Video Types Supported

VGA, XVGA

Highest Resolution Supported

1600 x 1200

Maximum Video Memory

Unidentified

Data Bus

64-bit PCI

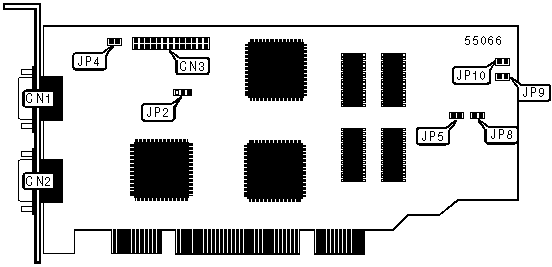

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port 1

CN1

VESA feature connector

CN3

15-pin analog video port 2

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Interrupt disabled

JP2

Pins 1 & 2 closed



Interrupt enabled

JP2

Pins 2 & 3 closed



Primary VGA enabled

JP4

Open



Primary VGA disabled

JP4

Closed



Secondary VGA enabled

JP5

Open



Secondary VGA disabled

JP5

Closed

»

Factory configured - do not alter - multiple board support

JP8

Unidentified

»

Factory configured - do not alter - multiple board support

JP9

Unidentified

»

Factory configured - do not alter - multiple board support

JP10

Unidentified
