APPIAN TECHNOLOGY
STANDARD JERONIMO J1
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
64-bit PCI |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
VESA feature connector |
CN2 |
|

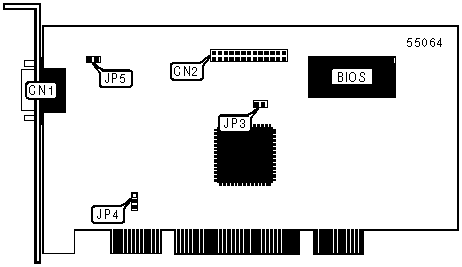

USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
VGA enabled |
JP3 |
Open | |
|
VGA disabled |
JP3 |
Closed | |
| » |
Interrupt disabled |
JP4 |
Pins 1 & 2 closed |
|
Interrupt enabled |
JP4 |
Pins 2 & 3 closed | |
|
CSYNC compatibility enabled |
JP5 |
Closed | |
|
CSYNC compatibility disabled |
JP5 |
Open | |
