ACCEL GRAPHICS, INC.
ACCELECLIPSE II (AGP)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
32MB DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
AGP |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Memory module socket |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
VGA enabled |
H1 |
Open |
|
VGA disabled |
H1 |
Closed |
|
VIDEO MEMORY CONFIGURATION | |
|
Note: |
ACCELECLPSE II is equipped with 15MB of onboard memory which may be upgraded to 20MB or 32MB with either a 4MB or 16MB memory module |
|
MISCELLANEOUS TECHNICAL NOTES |
|

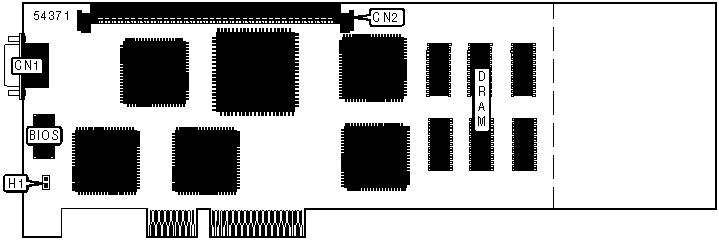

Card available in either a three-quarter length or a full length version. Three-quarter length board ends at the dotted line |
4 MB TEXTURE MEMORY MODULE
16 MB TEXTURE MEMORY MODULE
|
MISCELLANEOUS TECHNICAL NOTES |
|
Chips are located on both sides of the board. |
