Card Type	Video card
Video Chip Set	Cirrus Logic
Maximum Video Memory	1MB
Data Bus	PC/104
Video Types Supported	XVGA
Highest Resolution Supported	1280 x 1024

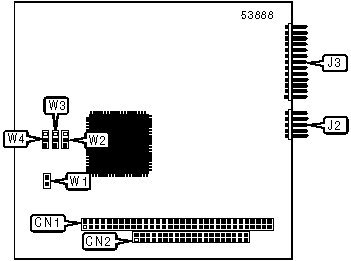

CONNECTIONS
Function	Label	Function	Label
PC/104 connector	CN1	Analog video connector	J2
PC/104 connector	CN2	Feature connector	J3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured – do not alter	W1	Unidentified

DRAM CONFIGURATION

Note: 512KB is factory installed and is not configurable. The location is unidentified. 1MB is available through special order.

BUS SELECTION
Bus	W2	W3	W4
8-bit	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
16-bit	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
