ASUS COMPUTER INTERNATIONAL

PCI-AV264GT/PLUS

Card Type

Video/Audio card

Video Chip Set

ATI Technologies, Inc.

Audio Chip Set

Creative Labs

Maximum Video Memory

4MB SGRAM (2MB on upgrade board)

Video Types Supported

XVGA

Highest Resolution Supported

1600x1200

I/O Options

Game port, VGA port, microphone in, wavetable connector, PC speaker in/out, Audio in - CD-ROM (3), line in, line out, volume control

Data Bus

Media Bus

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Wavetable connector

J2

Line in

CN2

PC speaker in

J3

Microphone in

CN3

PC speaker out

J4

Speaker out

CN4

Proprietary connector (AMC)

J5

Audio in - CD-ROM (Sony)

CN5

Header connector to Upgrade board

J6

Audio in - CD-ROM (Panasonic)

CN6

Header connector to Upgrade board

J7

Audio in - CD-ROM (Mitsumi)

CN7

Volume control

VR1

Game port

J1

Digital volume control

VR2

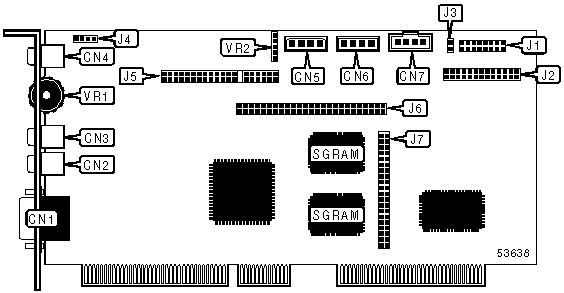

VIDEO MEMORY CONFIGURATION (SGRAM)

Size

Mainboard

Upgrade board

2MB

(2) 4 x 512KB

None

4MB

(2) 4 x 512KB

(2) 4 x 512KB

2MB Upgrade Board

CONNECTIONS

Function

Label

Function

Label

Header connector to mainboard

J1

Header connector to mainboard

J2
