ATI TECHNOLOGIES INC.

MACH32 PCI VGA (VRAM)

Card Type

Video card

Video Chip Set

ATI

Maximum Video Memory

2MB VRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

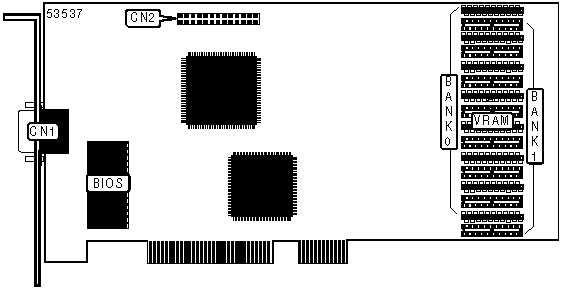

CONNECTIONS

Function

Label

Function

Label

15 -pin analog video port

CN1

Feature connector

CN2

VIDEO MEMORY CONFIGURATION (VRAM)

Size

Bank 0

Bank 1

1MB

(8)128KB

None

2MB

(8)128KB

(8)128KB
