PEGASUS COMPUTER INTERNATIONAL
3DP-V500TX
|
Card Type |
Video card |
|
Video Chip Set |
3Dlabs |
|
Maximum Video Memory |
8MB Dram & 8MB VRAM |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600x1200 |
|
Data Bus |
32-bit PCI |
|

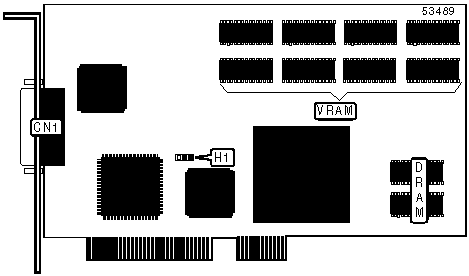

CONNECTIONS |
|
|
Function |
Label |
|
15-pin analog video port |
CN1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
VGA enabled |
H1 |
Pins 2 & 3 closed |
|
|
VGA disabled |
H1 |
Pins 1 & 2 closed |
|
DRAM CONFIGURATION |
|
|
Size |
Bank 0 |
|
8MB |
(4) 1MB x 16 |
|
VIDEO MEMORY CONFIGURATION (VRAM) |
|
|
Size |
Bank 0 |
|
8MB |
(16) 256KB x16 |
