BEHAVIOR TECH COMPUTER CORPORATION
VIDEOFEX VGA BTC-1515C
Card Type |
Video card |
Video Chip Set |
Unidentified |
Highest Resolution Supported |
800 x 600 |
Maximum Video Memory |
Unidentified |
Data Bus |
8/16-bit ISA |
Video Types Supported |
VGA |
CONNECTIONS | |||
Function |
Label |
Function |
Label |
9-pin digital video port |
CN1 |
15-pin analog video port |
CN2 |

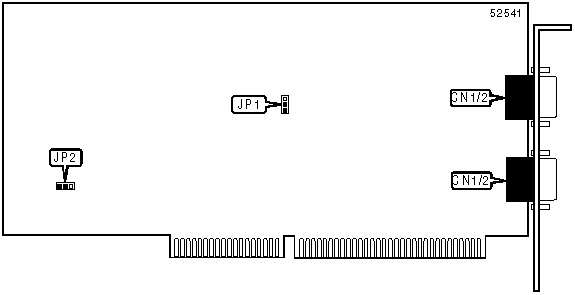

Note:The exact location of the CN1 and CN2 are unidentified. |
USER CONFIGURABLE SETTINGS | |||
Function |
Label |
Position | |
» |
IRQ2 disabled |
JP1 |
Pins 2 & 3 closed |
IRQ2 enabled |
JP1 |
Pins 1 & 2 closed | |
» |
8-bit bus slot selected |
JP2 |
Pins 2 & 3 closed |
16-bit bus slot selected |
JP2 |
Pins 1 & 2 closed |
