ALARIS, INC.

SKYEAGLE VLB

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

2MB RAM

Data Bus

32-bit VESA Local Bus

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

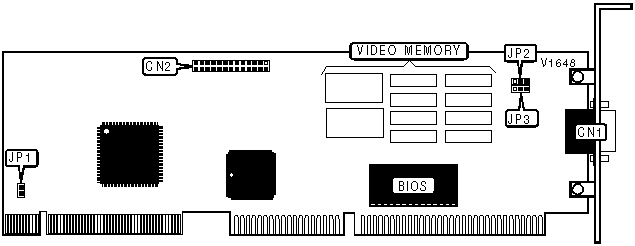

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

IRQ9 enabled

JP1

Closed



IRQ9 disabled

JP1

Open

»

VLB write wait state is the same as the mother board

JP2

Pins 1 & 2 closed



VLB write wait state 1

JP2

Pins 2 & 3 closed

»

VLB read wait select state 1

JP3

Pins 2 & 3 closed



VLB read wait select state 2

JP3

Pins 1 & 2 closed

VRAM CONFIGURATION

Note: The exact memory configuration is unidentified.
