Category	Video capture
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	640 x 480
Data Bus Type	16-bit ISA
Memory Type	N/A
Maximum Onboard Memory	N/A

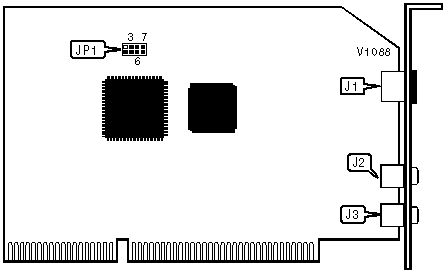

CONNECTIONS
Purpose	Location	Purpose	Location
S-video in	J1	Composite video 0	J3
Composite video 1	J2

BASE I/O ADDRESS SELECTION (JP1)
Address	Pins 1 & 2	Pins 3 & 4	Pins 5 & 6	Pins 7 & 8
260h	Closed	Closed	Open	Open
280h	Open	Open	Closed	Open
2A0h	Closed	Open	Closed	Open
340h	Open	Closed	Open	Closed
