Category	Video
Video Types Supported	VGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

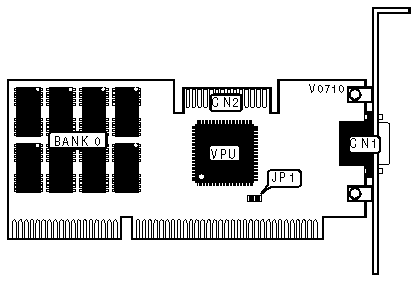

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2

ZERO WAIT STATE
Setting	JP1
» Disabled	Open
Enabled	Closed
