AMERICAN MEGATRENDS, INC.

FAST VIEW EISA

Category

Video

Video Types Supported

XVGA

Video Processor

S3

Highest Resolution Supported

1280 X 1024

Data Bus Type

16-bit EISA

Memory Type

VRAM

Maximum Onboard Memory

1MB

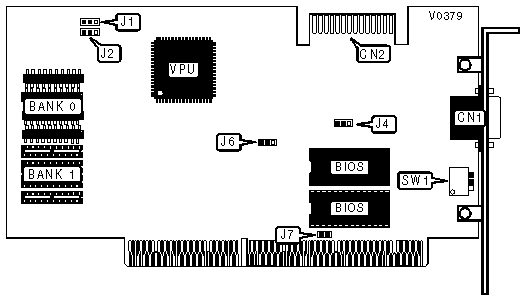

REFRESH RATE CONFIGURATION

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature Connector

CN2

640 X 480 REFRESH RATES

Refresh

SW1/switch 1

SW1/switch 2

SW1/switch 3

60Hz

Off

Off

Off

70Hz

On

Off

Off

800 X 600 REFRESH RATES

Refresh

SW1/switch 1

SW1/switch 2

SW1/switch 3

60Hz

Off

On

Off

70Hz

On

On

Off

56Hz

Off

Off

On

1024 X 768 REFRESH RATES

Refresh

SW1/switch 1

SW1/switch 2

SW1/switch 3

43Hz

On

Off

On

60Hz

Off

On

On

70Hz

On

On

On

FACTORY CONFIGURED SETTINGS

Jumper

Setting

J2

Pins 1 & 2 closed

J4

Pins 1 & 2 closed

J6

Pins 1 & 2 closed

J7

Open

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

J1

512KB

(4) 44256 ZIP

None

Pins 2 & 3 closed

1024KB

(4) 44256 ZIP

(4) 44256 ZIP

Pins 1 & 2 closed
