ADVANCED INTEGRATION RESEARCH, INC.

AVIEW2E (VERSION 1.2)

Category

Video

Video Types Supported

XVGA

Video Processor

86C911

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit EISA

Memory Type

VRAM

Maximum Onboard Memory

1024KB

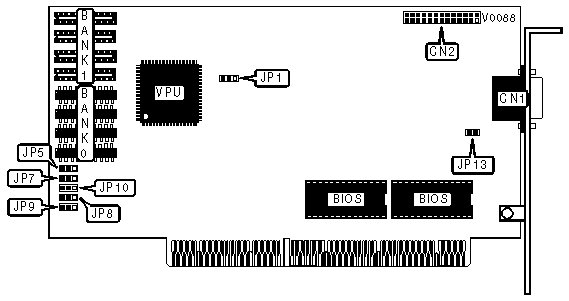

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

VIDEO INTERRUPT SELECTION

IRQ 2/9

JP1

»

Disabled

Open



Enabled

Closed

640 X 480 REFRESH RATE SELECTION

Rate

JP8

JP9

JP10

60Hz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

70Hz

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

800 X 600 REFRESH RATE SELECTION

Rate

JP8

JP9

JP10

60Hz

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

70Hz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

1024 X 768 REFRESH RATE CONFIGURATION

Rate

Mode

JP8

JP9

JP10

43Hz

Interlaced

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

60Hz

Non-Interlaced

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

70Hz

Interlaced

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

ZERO WAIT STATE SELECTION

Setting

JP13

»

Enabled

Closed



Disabled

Open

VRAM CONFIGURATION

Size

Bank 0

Bank 1

JP5

256KB

(4) 256K x 4 ZIP

None

Pins 2 & 3 closed

512KB

(4) 256K x 4 ZIP

(4) 256K x 4 ZIP

Pins 1 & 2 closed
