ATI TECHNOLOGIES, INC.
VLB MACH 32 (VRAM VERSION)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Mach32/ATI68875 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2048KB |
|

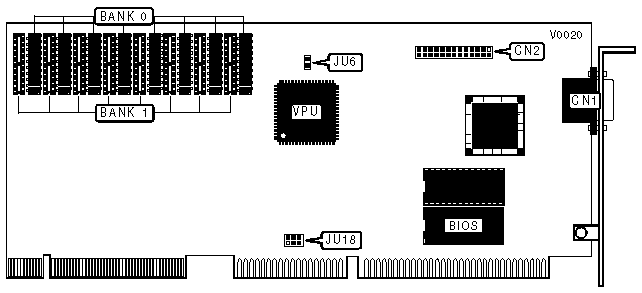

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA Feature connector |
CN2 |
|
CONTROLLER TYPE SELECTION | |
|
Type |
JU6 |
|
Mach32 |
Closed |
|
ATI68875 |
Open |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Jumper |
Position |
|
JU18 |
Open |
|
VRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1024KB |
(8) 256K x 4 |
None |
|
2048KB |
(8) 256K x 4 |
(8) 256K x 4 |
