ZOLTRIX, INC.

FM-336FI

Card Type

Modem (asynchronous)

Chipset

Rockwell

Maximum Data Rate

33.6Kbps

Maximum Fax Rate

14.4Kbps

Data Modulation

Bell 103A, 212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34

Rockwell V.FC

Fax Modulation

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

Fax Class

Class I

Data Bus

16-bit ISA

Card Size

Full height, half length

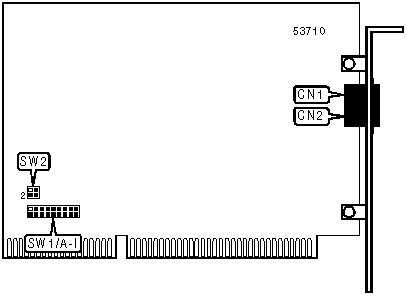

CONNECTIONS

Function

Label

Function

Label

Telephone line out

CN1

Telephone line in

CN2

INTERRUPT SELECTION

Setting

SW1/A

SW1/B

SW1/C

SW1/D

SW1/E

SW1/F

SW1/G

SW1/H

SW1/I

2/9

Open

Open

Open

Open

Closed

Open

Open

Open

Open

3

Open

Open

Open

Open

Open

Open

Open

Open

Closed

4

Open

Open

Open

Open

Open

Open

Open

Closed

Open

5

Open

Open

Open

Open

Open

Open

Closed

Open

Open

7

Open

Open

Open

Open

Open

Closed

Open

Open

Open

10

Open

Open

Open

Closed

Open

Open

Open

Open

Open

11

Open

Open

Closed

Open

Open

Open

Open

Open

Open

12

Open

Closed

Open

Open

Open

Open

Open

Open

Open

15

Closed

Open

Open

Open

Open

Open

Open

Open

Open

SERIAL PORT ADDRESS SELECTION

Setting

SW2

3F8h (COM1:)

Pins 1 & 2, 3 & 4 closed

2F8h (COM2:)

Pins 3 & 4 closed

3E8h (COM3:)

Pins 1 & 2 closed

2E8h (COM4:)

Open

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, B, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &P, &Q, &R, &S, &T, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \K, \N

%C, %E, %L, %Q

Special AT Commands

+MS

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S26

S27, S29, S30, S31, S32, S33, S36, S38, S46, S48, S82, S86, S95

Note: See MHI help file for complete information.

UNIDENTIFIED COMMANDS

Command

Default

S39

Unidentified

S40

Unidentified

S41

Unidentified

Proprietary AT Command Set

DIAL

Type:

Immediate

Format:

AT [cmds] D<#>;[cmds]

Description:

Dials the telephone number indicated according to any modifiers included in the string.

Command

Function

DL

Re-dial last number.

DP

Pulse dialing enabled.

DS=n

Dial stored telephone number n.

DT

Tone dialing enabled.

DW

Dialing resumed following dial tone detection.

D,

Dialing paused for amount of time specified in S8 register.

D!

Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.

D@

Wait for Quiet Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.

D^

Calling tone enabled for this call.

D&

Wait for prompt tone detection function enabled. Waits for prompt tone for amount of time specified by the S7 command.

D;

Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.

DISPLAY INFORMATION

Type:

Immediate

Format:

AT [cmds] In [cmds]

Description:

Displays information requested about the modem.

Command

Function

I0

Displays product identification code.

I1

Displays ROM checksum.

I2

Tests and displays ROM checksum result.

I3

Displays firmware revision.

I6

Displays data pump model and revision.

LINE SPEED

Type:

Register

Format:

AT [cmds] S37=n [cmds]

Description:

Sets the maximum allowable data exchange rate attempted during the handshaking process.

Command

Function

í S37=0

Attempt to connect at fastest common speed.

S37=1

Set speed to 300bps.

S37=2

Set speed to 300bps.

S37=3

Set speed to 300bps.

S37=5

Set speed to 1200bps.

S37=6

Set speed to 2400bps.

S37=7

Attempt to connect with V.23.

S37=8

Set speed to 4800bps.

S37=9

Set speed to 9600bps.

S37=10

Set speed to 12Kbps.

S37=11

Set speed to 14.4Kbps.

S37=12

Set speed to 7200bps.
