UNIDENTIFIED

9600 S/R FAX INTERNAL (REV.0)

Card Type

Modem (asynchronous)

Chip Set

Unidentified

Maximum Data Rate

2400bps

Maximum Fax Rate

9600bps

Data Bus

8-bit ISA

Fax Class

Unidentified

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis

Fax Modulation Protocol

ITU-T V.27ter, V.29

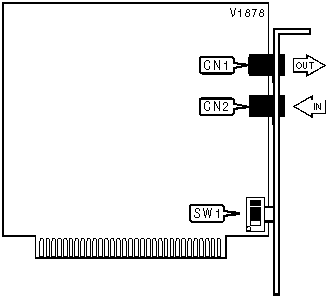

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

Line in

CN2

SERIAL PORT ADDRESS

Setting

SW1/1

SW1/2

COM1 (3F8h)

Off

Off

í COM2 (2F8h)

On

Off

COM3 (3E8h)

Off

On

COM4 (2E8h)

On

On

INTERRUPT

Setting

SW1/3

SW1/4

í 3

On

Off

4

Off

On

Proprietary AT Command Set

BIT MAPPED REGISTERS

Register

Default

S14

170

S16

0

S21

0

S22

118

S23

7

S27

64
