TTC COMPUTER PRODUCTS

VIKOM PRO

Modem Type

Data (Asynchronous)/Fax/Voice

Maximum Data Rate

2400bps

Maximum Fax Rate

9600bps

Data Bus

8-bit ISA

Fax Class

Unidentified

Data Modulation Protocol

Unidentified

Fax Modulation Protocol

Unidentified

Error Correction/Compression

Unidentified

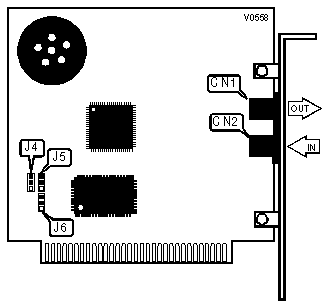

CONNECTIONS

Purpose

Location

Purpose

Location

Line out

CN1

Line in

CN2

COM PORT SETTINGS

COM

J4

J5

J6

í COM2/IRQ3

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

COM1/IRQ4

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

COM3/IRQ4

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

COM4/IRQ3

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed
