PATTON ELECTRONICS COMPANY

1010B

Card Type

Short Range Modem

Chip Set

Unidentified

I/O Options

25-pin serial port (RS-232),

network interface via RJ-45 (RJ-11 optional) terminal block

Wiring Type

Unshielded twisted pair

Maximum Data Rate

115.2Kbps

Data Bus

External

CONNECTIONS

Function

Label

Function

Label

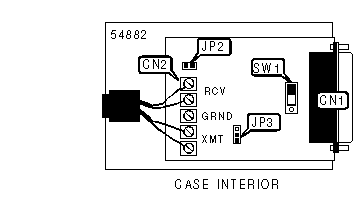

DTE/DCE serial port (25-pin connector)

CN1

Twisted pair connection terminal blocks

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

DCE mode

SW1

Off

DTE mode

SW1

On

DATA RATE

Source

JP2

JP3

í High speed mode (2400bps-115.2Kbps)

Open

Pins 1 & 2 closed

Low speed mode (1200bps-57.6Kbps

Closed

Pins 2 & 3 closed
