PARADYNE CORPORATION

7612 SNMP DSU

Card Type

DSU

Chip Set

Unidentified

I/O Options

DTE/DCE port, network interface via RJ-48 connector, power jack,

DTE port

Wiring Type

RJ-45 Unshielded twisted pair

T1 via RJ-48

Maximum Data Rate

56Kbps (64Kbps full duplex or clear channel)

Data Modulation Protocol

DDS, LADS, MIBII, SNMP

Data Bus

External

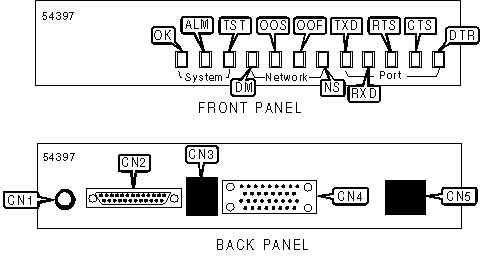

CONNECTIONS

Function

Label

Function

Label

Power Jack

CN1

DTE port (V.35 connector)

CN4

DTE/DCE port (25-pin serial connector)

CN2

Network interface via RJ-48 connector

CN5

RJ-45 UTP connector

CN3



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

OK

Green

On

DSU power is on

OK

Green

Off

DSU power is off, performing a self test, or detecting a system failure

ALM

Red

On

DSU has detected an alarm condition

ALM

Red

Off

DSU has not detected an alarm condition

TST

Yellow

On

DSU is executing a test

TST

Yellow

Off

DSU is not executing a test

DM

Green

On

Data is being transmitted/received

DM

Green

Off

CMI codes are being received

OOS

Red

On

DSU is receiving an out of service code from remote unit

OOS

Red

Off

DSU is not receiving an out of service code from remote unit

OOF

Red

On

DSU is detecting an out of frame condition

OOF

Red

Off

DSU is not detecting an out of frame condition

NS

Red

On

Carrier signal not detected

NS

Red

Off

Carrier signal detected

TXD

Green

On

Receiving all zeros from the DTE

TXD

Green

Off

Receiving all ones from the DTE

TXD

Green

Blinking

Data is being transferred

RXD

Green

On

Transmitting all zeros from the DTE

RXD

Green

Off

Transmitting all ones from the DTE

RXD

Green

Blinking

Data is being transferred

RTS

Green

On

RTS signal is high

RTS

Green

Off

RTS signal is low

CTS

Green

On

CTS signal is high

CTS

Green

Off

CTS signal is low

DTR

Green

On

DTR signal is high

DTR

Green

Off

DTR signal is low
