POWERCOM AMERICA, INC.

PM33V14E (ROCKWELL)

Card Type

Modem (asynchronous)

Chipset

Rockwell

I/O Options

Microphone, microphone in, speaker out, voice, speakerphone, SVD

Maximum Data Rate

33.6Kbps

Maximum Fax Rate

14.4Kbps

Data Modulation

Unidentified

Fax Modulation

Unidentified

Error Correction/Compression

MNP5, MNP10, V.42, V.42bis

Fax Class

Unidentified

Data Bus

Serial

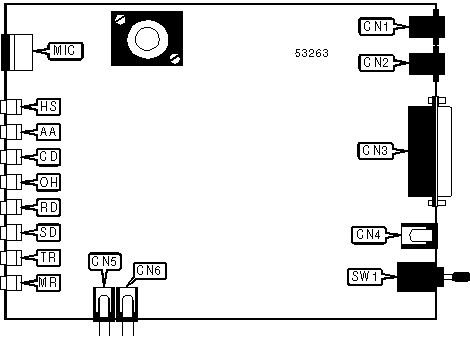

CONNECTIONS

Function

Label

Function

Label

Telephone line in

CN1

Microphone in

CN5

Telephone line out

CN2

Speaker out

CN6

Serial port

CN3

Microphone

MIC

DC power in

CN4

Power switch

SW1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

HS

Unidentified

On

Modem is operating at high speed

HS

Unidentified

Off

Modem is operating at low speed

AA

Unidentified

On

Auto-answer enabled

AA

Unidentified

Off

Auto-answer disabled

CD

Unidentified

On

Carrier signal detected

CD

Unidentified

Off

Carrier signal not detected

OH

Unidentified

On

Modem is off-hook

OH

Unidentified

Off

Modem is on-hook

RD

Unidentified

On

Modem is receiving data

RD

Unidentified

Off

Modem is not receiving data

SD

Unidentified

On

Modem is transmitting data

SD

Unidentified

Off

Modem is not transmitting data

TR

Unidentified

On

DTR signal is high

TR

Unidentified

Off

DTR signal is low

MR

Unidentified

On

Power is on

MR

Unidentified

Off

Power is off

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, B, D, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &P, &Q, &R, &S, &T, &V, &W, &Y, &Z

Extended AT Commands

\A, \N, \K, \V

%C, %E, %L, %Q

Special AT Commands

-K

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S22, S24, S25, S26, S29

S30, S32, S33, S39, S46, S48, S82, S91, S92

Note: See MHI help file for complete information.

UNIDENTIFIED COMMANDS

Command

Default

S21

4

S23

55

S27

74

S28

0

S31

194

S37

0

S41

13

Proprietary AT Command Set

See POWERCOM AMERICA, INC. PM33V14I (ROCKWELL) for a full command summary.
