PHILIPS CONSUMER ELECTRONICS, CO.

PCA22IV (VER.2)

Card Type

Fax, Modem (synchronous/asynchronous), Voice

Chip Set

Speakerphone, Voice-mail

Maximum Data Rate

33.6Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

8-bit ISA

Fax Class

Class I & II

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34

Rockwell V.FC

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

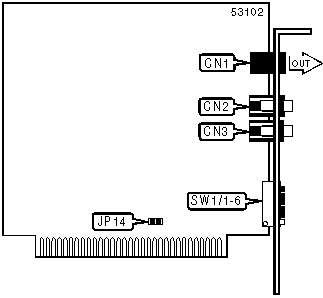

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

Microphone connector

CN3

Speaker connector

CN2



SERIAL PORT ADDRESS

Setting

SW1/1

SW1/2

JP14

COM1 (3F8h)

On

On

Open

COM2 (2F8h)

Off

On

Open

COM3 (3E8h)

On

Off

Open

COM4 (2E8h)

Off

Off

Open

í PnP

Off

Off

Closed

INTERRUPT

Setting

SW1/3

SW1/4

SW1/5

SW1/6

2/9

On

Off

Off

Off

3

Off

On

Off

Off

4

Off

Off

On

Off

5

Off

Off

Off

On

í PnP

Off

On

Off

Off

MISCELLANEOUS TECHNICAL NOTES

Supported command set is unidentified.
