Card Type	Fax, Modem (synchronous/asynchronous)
Chip Set	Unidentified
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212 ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.32terbo, V.34
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

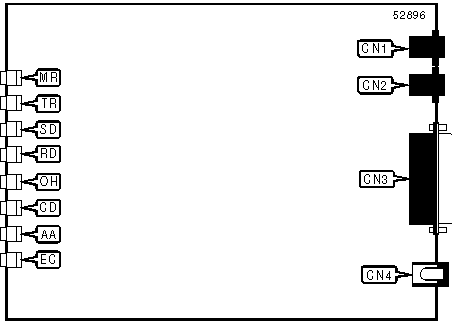

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		RS-232/422		CN3
Line out		CN2		DC power		CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
MR	Red	On	Power is on
MR	Red	Off	Power is off
TR	Red	On	DTR signal is high
TR	Red	Off	DTR signal is low
SD	Red	On	Modem is transmitting data
SD	Red	Off	Modem is not transmitting data
RD	Red	On	Modem is receiving data
RD	Red	Off	Modem is not receiving data
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected
AA	Red	On	Auto-answer enabled
AA	Red	Off	Auto-answer disabled
EC	Red	On	Error correction activated
EC	Red	Off	Error correction disabled

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, ‘Comma’, A/

A, E, M, O, P, S, T, V, X, Y, Z

&C, &D, &F, &G, &K, &P, &S, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \Q, \V, \X, %A, %C, %E

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S16, S18, S25, S26, S27, S91

Note: See MHI Help file for full command documentation.

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects automatic detection and negotiation of line speed during the handshake process
Command	Function
N0	Auto-mode disabled, handshake speed designated by AT%B command.
í N1	Auto-mode enabled, handshake speed designated by AT%B command and DTE speed.

AUTO-RELIABLE FALLBACK CHARACTER
Type:	Register
Format:	AT [cmds] S29=n [cmds]
Default:	0
Range:	0-127
Unit:	ASCII
Description:	Sets the character used as the auto-reliable fallback character; S29=0 will disable this function.

BIT MAPPED REGISTERS
Register	Default
S14	137
S15	83
S17	75
S19	3
S20	0
S21	48
S22	246
S23	12
S24	72
S28	16

BREAK TYPE
Type:	Configuration
Format:	AT [cmds] \Kn [cmds]
Default:	5
Range:	0-5
Unit:	N/A
Description:	Configures action of break signal

BAUD RATE
Type:	Configuration
Format:	AT [cmds] %Nn [cmds]
Description:	Select which type of baud signals will be used
Note:	For External models only.
Command		Function
í %N0		IBM PC DTE baud rate enabled
%N1		NEC PC98 DTE baud rate set 1 enabled
%N2		NEC PC98 DTE baud rate set 2 enabled

COMMAND MODE FROM DUMB/POWER-ON LEASED-LINE MODE
Type:	Configuration
Format:	AT*** <ENTER> (within 8 seconds after hard-reset)
Description:	Returns the modem to command mode from dumb mode or power-on leased-line operation, you must turn the modem off then on again first.
Note:	To permanently turn off dumb mode or power-on leased-line mode, change the stored profile by issuing one of these strings: for dumb mode, AT%D0&W&W1. For power-on leased-line mode, AT&L0&W&W1 For External models only.

COMMUNICATIONS MODE
Type:	Configuration
Format:	AT [cmds] &Mn [cmds]
Description:	Selects communications mode
Note:	AT&M1-3 is for external models only.
Command	Mode
í &M0	Asynchronous mode
&M1	Synchronous connect mode and asynchronous off-line command mode.
&M2	Synchronous connect mode and asynchronous off-line command mode and set DTR high.
&M3	Synchronous connect mode

COMMUNICATIONS MODE
Type:	Configuration
Format:	AT [cmds] &Qn [cmds]
Description:	Selects communications mode options
Note:	AT&Q1-3 is for external models only.
Command	Mode
í &Q0	Asynchronous mode, serial port speed follows connect speed.
&Q1	Asynchronous off-line command mode and synchronous connect mode.
&Q2	Asynchronous off-line command mode - modem autodials first number in directory, then synchronous connect mode.
&Q3	Asynchronous off-line command mode on low DTR, synchronous connect mode on high DTR.

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Note:	The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols.
Command	Protocol
B0	ITU-T V.22 at 300 or 1200bps
í B1	Bell 212A at 300 or 1200bps
B2	V.23 at 1200bps while AT%B1200 is set. (Answer mode: TX1200/RX75bps. Originate mode: TX75/RX1200bps.)

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Modifier	Function
P	Pulse dialing enabled
R	Answer mode enabled, originate mode disabled following handshake initiation
S=n	Dial stored telephone number n
T	Tone dialing enabled
W	Dialing resumed following dial tone detection
,	Dialing paused for amount of time specified in S8 register
@	Wait for 5 seconds of silence
!	Modem commanded to go off-hook for specified time before returning on-hook
;	Modem returned to command state after dialing
^	Calling tone enabled for this call

DCE LINE SPEED
Type:	Configuration
Format	AT [cmds] %Bn [cmds]
Description:	Sets the maximum allowable data exchange rate after handshake process.
Command	Function
%B300	300bps
%B1200	1200bps
%B2400	2400bps
%B4800	4800bps
%B7200	7200bps
%B9600	9600bps
%B12000	12.0Kbps
%B14400	14.4Kbps
í %B28800	28.8Kbps

DUMB MODE
Type:	Configuration
Format:	AT [cmds] %Dn [cmds]
Description:	Controls which mode the modem will operate in
Note:	For External models only.
Command		Function
í %D0		Smart mode enabled
%D1		Dumb mode enabled

HOOK CONTROL
Type:	Immediate
Format:	AT [cmds] Hn [cmds]
Description:	Selects whether the modem is on-hook or off-hook
Command	Function
H0	Modem commanded to go on-hook (hang-up)
H1	Modem commanded to go off-hook (make busy), disabled in Germany.

INACTIVITY TIMER
Type:	Configuration
Format:	AT [cmds] \Tn [cmds]
Default:	0, Denmark 1, France 2
Range:	0-90
Unit:	1 minute
Description:	Sets the length of time that the modem does not receive information before it disconnects.

INACTIVITY TIMER
Type:	Register
Format	AT [cmds] S30=n [cmds]
Default:	0
Range:	0-90
Unit:	1 second
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating hang-up process.

LINE SIGNAL QUALITY/ LINE SIGNAL LEVEL
Type:	Immediate
Format:	AT [cmds] %Q [cmds]
Description:	Returns a value which indicates line signal quality (average EQM value) and received line signal level (in -dBm)

LINE TYPE
Type:	Configuration
Format:	AT [cmds] &Ln [cmds]
Description:	Selects line type
Note:	AT&L2 is for external models only.
Command	Line Type
í &L0	Switched line (PSTN/Dial-up)
&L1	Manual Leased-line mode, issue this command after the modems are connected: AT&L1D originating modem and AT&L1A answering modem.
&L2	Power-on (Auto) Leased-line mode, issue this command after the modems are connected and power is turned on: ATS0=0&L2 originating modem and ATS0=1&L2 answering modem.

MODULATION SELECTION
Type:	Configuration
Format:	AT [cmds] \Mn [cmds]
Description:	Selects which modulation will be used for a connection
Command		Function
\M0		Both V.34 and V.32terbo modulation enabled
\M1		V.34 modulation only enabled
\M2		V.32terbo modulation only enabled

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product code
I1	Reports ROM checksum
I2	Tests and reports ROM checksum
I3	Reports model ID & firmware ID
I5	Reports country code

RESULT CODES
Type:	Configuration
Format:	AT [cmds] Qn [cmds]
Description:	Enables modem to send result codes to the DTE
Command	Function
í Q0	Result code sending enabled
Q1	Result code sending disabled
Q2	‘RING’ result code disabled; ‘CONNECT’ and ‘NO CARRIER" result codes disabled in answer mode.

RTS/CTS
Type:	Configuration
Format:	AT [cmds] &Rn [cmds]
Description:	Selects RTS/CTS options
Note:	For External models only.
Command	Function
í &R0	CTS follows RTS in synchronous mode
&R1	CTS forced high in synchronous mode

SLEEP TIMER
Type:	Register
Format	AT [cmds] S13=n [cmds]
Default:	6
Range:	0-255
Unit:	1 second
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode.

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume
Command	Function
L0	Low volume setting
L1	Low volume setting
í L2	Medium volume setting
L3	Highest volume setting
