PROMETHEUS PRODUCTS, INC.

MAC CYBERPORT PRO 144EV (M144EV)

MAC CYBERPHONE 144EV (M144EV)

MAC CYBERPHONE 144EVSP (M144EVSP)

Card Type

Fax, Modem (synchronous/asynchronous)

Chip Set

Unidentified

I/O Options

Speakerphone, Voice-mail

Maximum Data Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

External

Fax Class

Class I & II

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29, V.33

Error Correction/Compression

MNP5, V.42, V.42bis

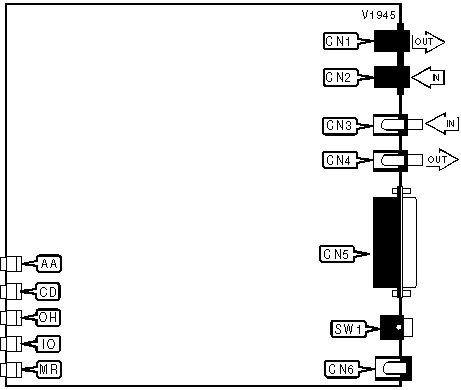

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

RS-232/422

CN5

Line in

CN2

DC power

CN6

Microphone in

CN3

Power switch

SW1

Speaker out

CN4



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

AA

Red

On

Auto-answer enabled

AA

Red

Off

Auto-answer disabled

AA

Red

Blinking

Phone is ringing

CD

Red

On

Carrier signal detected

CD

Red

Off

Carrier signal not detected

OH

Red

On

Modem is off-hook

OH

Red

Off

Modem is on-hook

IO

Red

On

Modem is transmitting or receiving data

IO

Red

Off

Modem is not transmitting or receiving data

MR

Red

On

Power is on

MR

Red

Off

Power is off

Proprietary AT Command Set

AUTO-RELIABLE TIME BUFFER CONFIGURATION

Type:

Configuration

Format:

AT [cmds] \Cn [cmds]

Description:

Controls the handling of incoming data during auto-reliable time period

Command

Function

\C0

Data is discarded

\C1

Data is buffered

\C2

Data is discarded; modem returns to normal mode on receiving auto-reliable fallback character.

AUTO-RETRAIN

Type:

Configuration

Format:

AT [cmds] %En [cmds]

Description:

Controls auto-retrain mode

Command

Function

%E0

Auto-retrain disabled

%E1

Auto-retrain enabled

BREAK TYPE

Type:

Configuration

Format:

AT [cmds] \Kn [cmds]

Description:

Configures action of break signal

Command

Break from DTE

\K0

Online command mode enabled, send no break to remote modem

\K1

Break sent to remote modem and buffered cleared

\K2

Online command mode enabled, send no break to remote modem

\K3

Send break to remote modem immediately

\K4

Online command mode enabled, send no break to remote modem

\K5

Send break with transmitted data

COMPRESSION

Type:

Configuration

Format:

AT [cmds] %Cn [cmds]

Description:

Selects data compression

Command

Function

%C0

Data compression disabled

%C1

MNP5 enabled

CONNECT MODE

Type:

Configuration

Format:

AT [cmds] \Nn [cmds]

Description:

Controls the type of connection the modem will operate in

Command

Function

\N0

Normal mode enabled

\N1

Direct mode enabled

\N2

MNP reliable mode enabled

\N3

Auto-reliable mode enabled

\N4

V.42 reliable mode enabled

\N5

V.42 auto-reliable mode enabled

\N6

Reliable mode enabled

DICTIONARY SIZE

Type:

Configuration

Format:

AT [cmds] %Dn [cmds]

Description:

Select dictionary size

Command

Function

%D0

Select 1/2K dictionary

%D1

Select 1K dictionary

%D2

Select 2K dictionary

ERROR CONTROL BUFFER - MAXIMUM

Type:

Register

Format:

AT [cmds] S50=n [cmds]

Default:

200

Range:

0-255

Unit:

Unidentified

Description:

Controls the maximum size of the error control buffer

ERROR CONTROL BUFFER - MINIMUM

Type:

Register

Format:

AT [cmds] S49=n [cmds]

Default:

10

Range:

0-255

Unit:

Unidentified

Description:

Controls the minimum size of the error control buffer

FLOW CONTROL

Type:

Configuration

Format:

AT [cmds] \Gn [cmds]

Description:

Selects modem port flow control

Command

Function

\G0

Flow control disabled

\G1

Flow control enabled

FLOW CONTROL - HARDWARE

Type:

Configuration

Format:

AT [cmds] \Ln [cmds]

Description:

Selects the transfer mode for MNP link

Command

Function

\L0

Hardware flow control enabled (used for Mac with standard Mac modem cable)

\L1

Hardware flow control disabled (used for PC or Mac with hardware flow-control cable)

FLOW CONTROL TYPE

Type:

Configuration

Format:

AT [cmds] \Qn [cmds]

Description:

Sets type of flow control used by modem

Command

Function

\Q0

Flow control disabled

\Q1

Bi-directional XON/XOFF flow control and bi-directional RTS/CTS enabled

\Q2

CTS flow control by DCE enabled

\Q3

Bi-directional RTS/CTS flow control enabled

\Q4

Unidirectional XON/XOFF flow control by DCE enabled

MNP RESULT CODES

Type:

Configuration

Format:

AT [cmds] \Vn [cmds]

Description:

Selects MNP result codes

Command

Function

\V0

MNP result codes disabled

\V1

MNP result codes enabled

INACTIVITY TIMER

Type:

Configuration

Format:

AT [cmds] \Tn [cmds]

Default:

0

Range:

0-90

Unit:

1 minute

Description:

Sets the length of time that the modem does not receive information before it disconnects.

REPORT INFORMATION

Type:

Immediate

Format:

AT [cmds] In [cmds]

Description:

Displays information requested

Command

Function

I0

Reports 3 digit product code

I1

Reports ROM checksum

I2

Reports OK

I3

Reports firmware version

I4

Reports configuration settings

XON/XOFF PASS-THROUGH

Type:

Configuration

Format:

AT [cmds] \Xn [cmds]

Description:

Selects whether XON/XOFF signals are sent to remote modem

Command

Function

\X0

XON/XOFF signals trapped by local modem

\X1

XON/XOFF passed through local modem
