Card Type	Fax, Modem (synchronous/asynchronous), Voice
Chip Set	Unidentified
I/O Options	Voice-mail
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

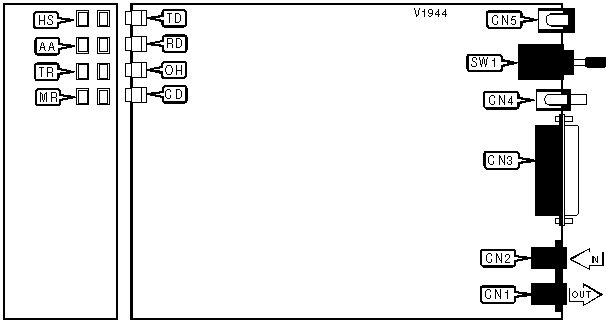

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		Speaker out		CN4
Line in		CN2		DC power		CN5
RS-232/422		CN3		Power switch		SW1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
HS	Red	On	Modem is operating at 9600bps or faster
HS	Red	Off	Modem is operating at slower than 9600bps
AA	Red	On	Auto-answer enabled
AA	Red	Off	Auto-answer disabled
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
RD	Red	Blinking	Modem is receiving data
RD	Red	Off	Modem is not receiving data
TD	Red	Blinking	Modem is transmitting data
TD	Red	Off	Modem is not transmitting data
TR	Red	On	DTR signal is high
TR	Red	Off	DTR signal is low
MR	Red	On	Power is on
MR	Red	Off	Power is off

ACCEPT MNP RELIABLE MODE
Type:	Immediate
Format:	AT [cmds] \U [cmds]
Description:	Accept remote modem’s request for MNP reliable mode

AUTO-FALLBACK/FALL-FORWARD
Type:	Configuration
Format:	AT [cmds] %Gn [cmds]
Description:	Selects auto-fallback/fall-forward
Command	Function
í %G1	Auto-fallback/fall-forward disabled
%G0	Auto-fallback/fall-forward enabled

AUTO-RELIABLE FALLBACK CHARACTER
Type:	Configuration
Format:	AT [cmds] %An [cmds]
Default:	13
Range:	0-127
Unit:	ASCII
Description:	Sets the character used as the auto-reliable fallback character; %A0 will disable this function.

AUTO-RELIABLE TIME BUFFER CONFIGURATION
Type:	Configuration
Format:	AT [cmds] \Cn [cmds]
Description:	Controls the handling of incoming data during auto-reliable time period
Command	Function
í \C0	Data is discarded
\C1	Data is buffered
\C2	Data is discarded; modem returns to normal mode on receiving auto-reliable fallback character.

AUTO-RETRAIN
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls auto-retrain mode
Command	Function
%E0	Auto-retrain disabled
í %E1	Auto-retrain enabled

BREAK SEND
Type:	Configuration
Format:	AT [cmds] \Bn [cmds]
Default:	3
Range:	1-9
Unit:	.1 second
Description:	Sends break to modem

BREAK TYPE
Type:	Configuration
Format:	AT [cmds] \Kn [cmds]
Default:	5
Range:	0-5
Description:	Configures action of break signal

COMPRESSION
Type:	Configuration
Format:	AT [cmds] %Cn [cmds]
Description:	Selects data compression
Command	Function
%C0	Data compression disabled
í %C1	MNP5 enabled

CONNECT MODE
Type:	Configuration
Format:	AT [cmds] \Nn [cmds]
Description:	Controls the type of connection the modem will operate in
Command	Function
\N0	Normal mode enabled
\N1	Direct mode enabled
\N2	MNP reliable mode enabled
í \N3	Auto-reliable mode enabled
\N4	V.42 reliable mode enabled
\N5	MNP auto-reliable mode enabled
\N6	Reliable mode enabled

CONVERT TO MNP RELIABLE MODE
Type:	Immediate
Format:	AT [cmds] \Y [cmds]
Description:	Converts to MNP reliable mode from normal or direct mode

EXTENDED RESULT CODES
Type:	Configuration
Format:	AT [cmds] \Vn [cmds]
Description:	Selects extended result codes
Command	Function
» \V0	Standard result codes enabled
\V1	Error correction result codes enabled

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] \Gn [cmds]
Description:	Selects modem port flow control
Command	Function
í \G0	Flow control disabled
\G1	Flow control enabled

FLOW CONTROL TYPE
Type:	Configuration
Format:	AT [cmds] \Qn [cmds]
Description:	Sets type of flow control used by modem
Command	Function
\Q0	Flow control disabled
\Q1	Bi-directional XON/XOFF flow control enabled
\Q2	CTS flow control by DCE enabled
í \Q3	Bi-directional RTS/CTS flow control enabled

INACTIVITY TIMER
Type:	Configuration
Format:	AT [cmds] \Tn [cmds]
Default:	0
Range:	0-90
Unit:	1 minute
Description:	Sets the length of time that the modem does not receive information before it disconnects. \T=0 will disable timer.

INITIATE MNP RELIABLE MODE
Type:	Immediate
Format:	AT [cmds] \O [cmds]
Description:	Initiates MNP reliable mode from normal or direct mode

LINE SIGNAL LEVEL
Type:	Immediate
Format:	AT [cmds] %L [cmds]
Description:	Returns a value which indicates the received line signal level

LINE SIGNAL QUALITY
Type:	Immediate
Format:	AT [cmds] %Q [cmds]
Description:	Returns a value which indicates line signal quality

LOCK SERIAL PORT
Type:	Configuration
Format:	AT [cmds] \Jn [cmds]
Description:	Sets operation of serial port speed
Command	Function
\J0	Serial speed follows connect speed
\J1	Serial speed locked

MAXIMUM BLOCK SIZE FOR TRANSMISSION
Type:	Configuration
Format:	AT [cmds] \An [cmds]
Description:	Sets the maximum transmittable block size
Command	Function
\A0	MNP block size is 64 characters
\A1	MNP block size is 128 characters
\A2	MNP block size is 192 characters
í \A3	MNP block size is 256 characters

MNP RESULT CODES
Type:	Configuration
Format:	AT [cmds] \Vn [cmds]
Description:	Selects MNP result codes
Command	Function
í \V0	MNP result codes disabled
\V1	MNP result codes enabled

MNP - STREAM/BLOCK MODE
Type:	Configuration
Format:	AT [cmds] \Ln [cmds]
Description:	Selects the transfer mode for MNP link
Command	Function
í \L0	Stream mode for MNP enabled
\L1	Block mode for MNP enabled

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product ID
I1	Reports ROM checksum
I2	Tests and reports ROM checksum
I3	Reports ROM
I4	Reports modem capabilities
I9	Reports modem serial number and product code

SWITCH TO NORMAL MODE
Type:	Immediate
Format:	AT [cmds] \Z [cmds]
Description:	Switches to normal mode from MNP mode

V.32 - AUTO-RETRAIN
Type:	Configuration
Format:	AT [cmds] &Bn [cmds]
Description:	Controls auto-retrain function if poor line quality is detected
Command	Function
&B0	Auto-retrain disabled modem hangs-up
í &B1	Auto-retrain enabled if line quality is poor
&B2	Auto-retrain disabled modem doesn’t hang-up

V.42 - DETECTION PHASE
Type:	Configuration
Format:	AT [cmds] -Jn [cmds]
Description:	Controls V.42 detection
Command	Function
-J0	V.42 detection disabled
í -J1	V.42 detection enabled

V.42bis - COMPRESSION CONTROL
Type:	Configuration
Format:	AT [cmds] "Hn [cmds]
Description:	Controls V.42bis data compression
Command	Function
"H0	V.42bis disabled
"H1	V.42bis when transmitting enabled
"H2	V.42bis when receiving enabled
í "H3	V.42bis when transmitting/receiving enabled

V.42bis - ERASE DICTIONARY
Type:	Configuration
Format:	AT [cmds] %P [cmds]
Description:	Erases V.42bis dictionary

V.42bis - MAXIMUM STRING LENGTH
Type:	Immediate
Format:	AT [cmds] "On [cmds]
Default:	Unidentified
Range:	6-250
Unit:	Characters
Description:	Selects string size for V.42bis compression

XON/XOFF PASS-THROUGH
Type:	Configuration
Format:	AT [cmds] \Xn [cmds]
Description:	Selects whether XON/XOFF signals are sent to remote modem
Command	Function
í \X0	XON/XOFF signals trapped by local modem
\X1	XON/XOFF passed through local modem
