SHUTTLE COMPUTER INTERNATIONAL, LTD.

HOT 255

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Game/MIDI port, audio in - CD-ROM (3), microphone in, line in, line out

Data Bus

32-bit PCI

Card Size

Half-length, half-height card

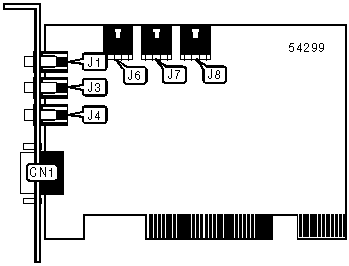

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Audio in - CD-ROM

J6

Line out

J1

Audio in - CD-ROM

J7

Line in

J3

Audio in - CD-ROM

J8

Microphone in

J4
