MOTOROLA, INC.

VANGUARD 320

Card Type

Frame relay adapter, Ethernet router

Processor

Motorola 68360

Processor Speed

Unidentified

Chip Set

Unidentified

Maximum Onboard Memory

12MB DRAM/2MB Flash RAM

I/O Options

Serial ports (3), control port, telephony ports (2)

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

DSU Transfer Rate

56Kbps

DSU Protocol

DDS

ISDN Transfer Rate

64Kbps x 2

ISDN Protocol

Unidentified

ISDN Switch Type

Unidentified

Data Bus

Serial

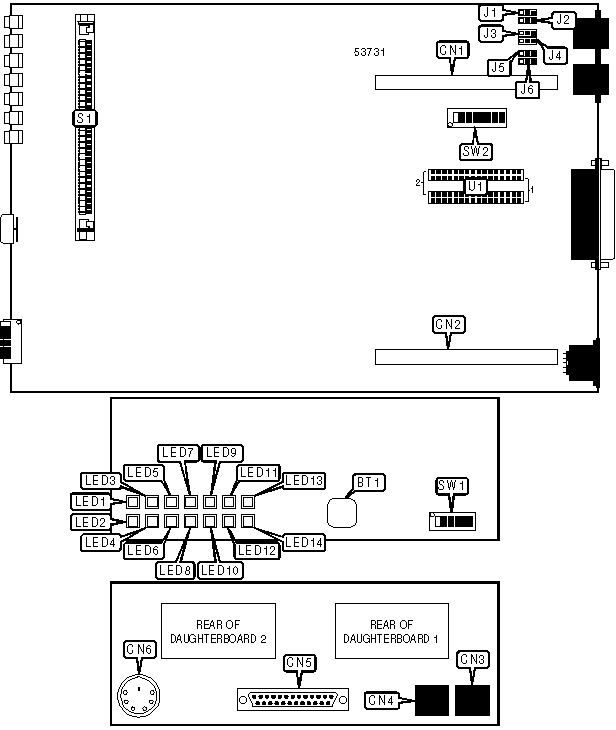

CONNECTIONS

Function

Label

Function

Label

Reset button

BT1

Serial control port (port 3)

CN4

Header for daughtercard 1 (port 1)

CN1

V.11, V.24, V.35, or V.36 serial port , or DSU port (port 4)

CN5

Header for daughtercard 2 (port 2)

CN2

DC power in

CN6

UTP connector

CN3



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Port 3 pin 22 used for ring indicator

SW1/1

Off



Port 3 pin 22 used to enter test mode in DCE mode, ring indicator in DTE mode

SW1/1

On

»

Port 3 pin 25 used for busy out indicator

SW1/2

Off



Port 3 pin 25 used for test mode indicator for DTE mode, busy out for DCE mode

SW1/2

On

»

Factory configured - do not alter

SW1/3

Unidentified

»

Port 4 is normal serial port

SW1/4

Off



Port 4 is the PAD port (forces serial configuration to 9600bps, no parity, 8 data bits, 1 stop bit)

SW1/4

On

»

Normal operation

SW1/5

Off



Enter diagnostic test mode

SW1/5

On

»

Normal operation

SW1/6

Off



Reset entire configuration to factory defaults

SW1/6

On

Note:To use SW1/6, power up the adapter, turn SW1/6 on, press the reset button, and turn SW1/6 back off again.

DRAM

Setting

On Board

S1

4MB

4MB

None

8MB

4MB

(1) 4M x 9

12MB

4MB

(1) 8M x 9

PORT 3 TYPE

Setting

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

SW2/6

V.11 DTE

Off

Off

Off

Off

Off

On

V.11 DCE

Off

Off

Off

Off

Off

On

V.24 DTE

On

On

On

On

On

Off

V.24 DCE

On

On

On

On

On

Off

V.35 DTE

Off

Off

Off

Off

Off

On

V.35 DCE

Off

Off

Off

Off

Off

On

V.36 DTE

Off

Off

Off

Off

Off

On

V.36 DCE

Off

Off

Off

Off

Off

On

DSU

Off

Off

Off

Off

Off

On

PORT 3 TYPE (CON’T)

Setting

SW2/7

SW2/8

U1

V.11 DTE

On

On

V.11 module in position 1

V.11 DCE

On

On

V.11 module in position 2

V.24 DTE

Off

Off

V.24 module in position 1

V.24 DCE

Off

Off

V.24 module in position 2

V.35 DTE

On

On

V.35 module in position 1

V.35 DCE

On

On

V.35 module in position 2

V.36 DTE

On

On

V.36 module in position 1

V.36 DCE

On

On

V.36 module in position 2

DSU

On

On

DSU module in position 1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Software is running

LED1

Unidentified

Off

Hardware failure detected

LED1

Unidentified

Blinking

Software is downloading or card is booting

LED2

Unidentified

On

Power is on

LED2

Unidentified

Off

Power is off

LED3

Unidentified

On

Test failed

LED3

Unidentified

Off

No test in progress or test passed

LED3

Unidentified

Blinking

Test in progress

LED4

Unidentified

On

Hardware or software failure detected

LED4

Unidentified

Off

Normal operation

LED5

Unidentified

On

Card is transmitting SPACE signal to network

LED5

Unidentified

Off

Card is transmitting MARK signal to network

LED6

Unidentified

On

Card is receiving SPACE signal from network

LED6

Unidentified

Off

Card is receiving MARK signal from network

LED7

Unidentified

On

Card is transmitting SPACE signal to port 4

LED7

Unidentified

Off

Card is transmitting MARK signal to port 4

LED8

Unidentified

On

Card is receiving SPACE signal from port 4

LED8

Unidentified

Off

Card is receiving MARK signal from port 4

LED9

Unidentified

On

Card is transmitting SPACE signal to port 3

LED9

Unidentified

Off

Card is transmitting MARK signal to port 3

LED10

Unidentified

On

Card is receiving SPACE signal from port 3

LED10

Unidentified

Off

Card is receiving MARK signal from port 3

LED11

Unidentified

On

Card is transmitting SPACE signal to port 2

LED11

Unidentified

Off

Card is transmitting MARK signal to port 2

LED12

Unidentified

On

Card is receiving SPACE signal from port 2

LED12

Unidentified

Off

Card is receiving MARK signal from port 2

LED13

Unidentified

On

Card is transmitting SPACE signal to port 1

LED13

Unidentified

Off

Card is transmitting MARK signal to port 1

LED14

Unidentified

On

Card is receiving SPACE signal from port 1

LED14

Unidentified

Off

Card is receiving MARK signal from port 1

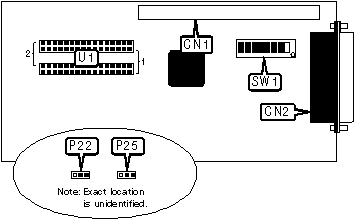

CONNECTIONS

Function

Label

Function

Label

Header to main board (on both front and back of card)

CN1

V.11 V.24, V.35, V.36, or DSU port

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Pin 22 used for ring indicator

P22

RI



Pin 22 used to enter test mode in DCE mode, ring indicator in DTE mode

P22

TM

»

Pin 25 used for busy out indicator

P25

TM



Pin 25 used for test mode indicator for DTE mode, busy out for DCE mode

P25

RI

SERIAL PORT TYPE

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

V.11 DTE

Off

Off

Off

Off

Off

On

V.11 DCE

Off

Off

Off

Off

Off

On

V.24 DTE

On

On

On

On

On

Off

V.24 DCE

On

On

On

On

On

Off

V.35 DTE

Off

Off

Off

Off

Off

On

V.35 DCE

Off

Off

Off

Off

Off

On

V.36 DTE

Off

Off

Off

Off

Off

On

V.36 DCE

Off

Off

Off

Off

Off

On

DSU

Off

Off

Off

Off

Off

On

SERIAL PORT TYPE (CON’T)

Setting

SW1/7

SW1/8

U1

V.11 DTE

On

On

V.11 module in position 1

V.11 DCE

On

On

V.11 module in position 2

V.24 DTE

Off

Off

V.24 module in position 1

V.24 DCE

Off

Off

V.24 module in position 2

V.35 DTE

On

On

V.35 module in position 1

V.35 DCE

On

On

V.35 module in position 2

V.36 DTE

On

On

V.36 module in position 1

V.36 DCE

On

On

V.36 module in position 2

DSU

On

On

DSU module in position 1

Card Type

ISDN TA

ISDN Transfer Rate

64Kbps x 2

ISDN Protocol

Unidentified

Switch Type

Unidentified

CONNECTIONS

Function

Label

Function

Label

Header to main board (on both front and back of card)

CN1

ISDN S/T interface

CN2



ISDN S/T interface

CN3

Note:Two connectors are provided so the user can daisy-chain devices on the S/T bus.

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

S/T bus terminated

SW1

Off



S/T bus not terminated

SW1

On

VANGUARD 320 (ISDN U DAUGHTERCARD)

Card Type

ISDN TA

ISDN Transfer Rate

64Kbps x 2

ISDN Protocol

Unidentified

Switch Type

Unidentified

CONNECTIONS

Function

Label

Function

Label

Header to main board (on both front and back of card)

CN1

ISDN U interface

CN2

Card Type

DDS DSU

DSU Transfer Rate

56Kbps

Modulation Protocol

Unidentified

CONNECTIONS

Function

Label

Function

Label

Header to main board (on both front and back of card)

CN1

Line out

CN2
