Card Type	Modem (asynchronous)
Chipset	Unidentified
I/O Options	Voice, speakerphone, SVD
Maximum Data Rate	33.6Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 Rockwell V.FC
Fax Modulation	ITU-T V.17, V.27ter, V.29
Error Correction/Compression	MNP5, MNP10EC, V.42, V.42bis
Fax Class	Class I & II
Data Bus	8-bit ISA
Card Size	Full height, one-third length

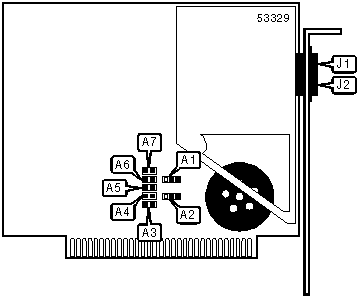

CONNECTIONS
Function	Label	Function	Label
Telephone line	J1	Telephone line	J2

SERIAL PORT ADDRESS SELECTION
Setting	A1	A2
2E8h (COM4:)	Pins 2 & 3 closed	Pins 2 & 3 closed
2F8h (COM2:)	Pins 1 & 2 closed	Pins 2 & 3 closed
3E8h (COM3:)	Pins 2 & 3 closed	Pins 1 & 2 closed
3F8h (COM1:)	Pins 1 & 2 closed	Pins 1 & 2 closed

INTERRUPT SELECTION
Setting	A3	A4	A5	A6	A7
2	Closed	Open	Open	Open	Open
3	Open	Closed	Open	Open	Open
4	Open	Open	Closed	Open	Open
5	Open	Open	Open	Closed	Open
7	Open	Open	Open	Open	Closed

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, A/

A, B, D, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &Q, &R, &S, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \G, \K, \L, \N, \V

%C, %E, %L, %Q

Special AT Commands

-C, :E, *H, -K, )M, @M, +MS, -Q

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S18, S24, S25, S29, S30, S32, S33, S38

S48, S82, S86, S95

Note: See MHI help file for complete information.
