MOTOROLA, INC.
2430I
|
Card Type |
Modem (synchronous/asynchronous) |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
2400bps |
|
Data Bus |
External |
|
Data Modulation Protocol |
Bell ITU-T V.22, V.23 |
|

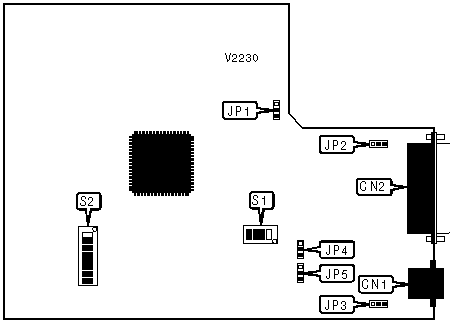

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
V.24/V.35 connector |
CN2 | |||
Note: The function and number of buttons is unidentified. | ||||||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
í Chassis ground connected to signal ground |
JP1 |
Pins 2 & 3 closed |
|
Chassis ground not connected to signal ground |
JP1 |
Pins 1 & 2 closed |
|
í RTS flow control enabled |
JP2 |
Pins 2 & 3 closed |
|
Software flow control enabled |
JP2 |
Pins 1 & 2 closed |
|
í Line in relay disabled |
JP3 |
Pins 2 & 3 closed |
|
Line in relay enabled |
JP3 |
Pins 1 & 2 closed |
|
í Factory configured - do not alter |
S2/1 |
Unidentified |
|
í Factory configured - do not alter |
S2/2 |
Unidentified |
|
í Factory configured - do not alter |
S2/3 |
Unidentified |
|
í Factory configured - do not alter |
S2/4 |
Unidentified |
|
í Factory configured - do not alter |
S2/5 |
Unidentified |
|
Line impedance set to 600 ohms |
S2/6 |
On |
|
Line impedance set to 900 ohms |
S2/6 |
Off |
|
LINE TYPE | ||
|
Setting |
JP4 |
JP5 |
|
í Switched line |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
Leased line |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
TRANSMISSION LEVEL | ||||
|
Setting |
S2/1 |
S2/2 |
S2/3 |
S2/4 |
|
0dBm |
Off |
Off |
Off |
Off |
|
-1dBm |
On |
Off |
Off |
Off |
|
-2dBm |
Off |
On |
Off |
Off |
|
-3dBm |
On |
On |
Off |
Off |
|
-4dBm |
Off |
Off |
On |
Off |
|
-5dBm |
On |
Off |
On |
Off |
|
-6dBm |
Off |
On |
On |
Off |
|
-7dBm |
On |
On |
On |
Off |
|
-8dBm |
Off |
Off |
Off |
On |
|
-9dBm |
On |
Off |
Off |
On |
|
-10dBm |
Off |
On |
Off |
On |
|
-11dBm |
On |
On |
Off |
On |
|
-12dBm |
Off |
Off |
On |
On |
|
-13dBm |
On |
Off |
On |
On |
|
-14dBm |
Off |
On |
On |
On |
|
-15dBm |
On |
On |
On |
On |
