MITEL CORPORATION
ENHANCED DUAL T1/E1 REV 3.1
|
Card Type |
T1/E1 DSU |
|
Chip Set |
Mitel |
|
I/O Options |
MVIP bus |
|
Maximum Transfer Rate |
1.544Mbps x 2, 2.048Mbps x 2 |
|
Data Bus |
16-bit ISA |
|
Data Modulation Protocol |
Unidentified |
|

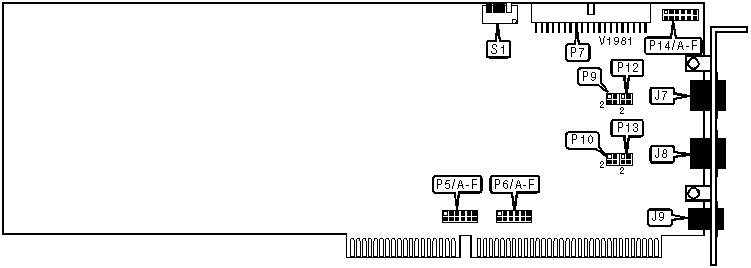

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
T1/E1 line 1 |
J7 |
Handset |
J9 |
|
T1/E1 line 2 |
J8 |
MVIP bus |
P7 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
IRQ driver terminated |
P5/A |
Closed |
|
IRQ driver not terminated |
P5/A |
Open | |
| » |
Factory configured - do not alter |
P14/E |
N/A |
| » |
Factory configured - do not alter |
P14/F |
N/A |
|
BASE I/O ADDRESS | |||||
|
Setting |
S3/1 |
S3/2 |
S3/3 |
S3/4 | |
|
0200h |
On |
On |
On |
Off | |
| » |
0300h |
On |
On |
On |
On |
|
2200h |
On |
On |
Off |
Off | |
|
2300h |
On |
On |
Off |
On | |
|
4200h |
On |
Off |
On |
Off | |
|
4300h |
On |
Off |
On |
On | |
|
6200h |
On |
Off |
Off |
Off | |
|
6300h |
On |
Off |
Off |
On | |
|
8200h |
Off |
On |
On |
Off | |
|
8300h |
Off |
On |
On |
On | |
|
A200h |
Off |
On |
Off |
Off | |
|
A300h |
Off |
On |
Off |
On | |
|
C200h |
Off |
Off |
On |
Off | |
|
C300h |
Off |
Off |
On |
On | |
|
E200h |
Off |
Off |
Off |
Off | |
|
E300h |
Off |
Off |
Off |
On | |
|
INTERRUPT | |||||
|
Setting |
P5/B |
P5/C |
P5/D |
P5/E |
P5/F |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
|
IRQ6 |
Open |
Open |
Open |
Closed |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Closed |
|
IRQ9 |
Open |
Open |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
|
IRQ14 |
Open |
Open |
Open |
Open |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
|
INTERRUPT (CON’T) | ||||||
|
Setting |
P6/A |
P6/B |
P6/C |
P6/D |
P6/E |
P6/F |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ6 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ9 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ10 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ14 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
LINE 1 WIRE PAIRS | |||
|
Setting |
P9 |
P12 | |
| » |
Normal |
Pins 1 & 3, 2 & 4 closed |
Pins 1 & 3, 2 & 4 closed |
|
Reversed |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2, 3 & 4 closed | |
|
LINE 2 WIRE PAIRS | |||
|
Setting |
P10 |
P13 | |
| » |
Normal |
Pins 1 & 3, 2 & 4 closed |
Pins 1 & 3, 2 & 4 closed |
|
Reversed |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2, 3 & 4 closed | |
|
ISDN LINE TERMINATION | |||||
|
Setting |
P14/A |
P14/B |
P14/C |
P14/D | |
| » |
Terminated |
Closed |
Closed |
Closed |
Closed |
|
Not terminated |
Open |
Open |
Open |
Open | |
