CTC UNION TECHNOLOGIES CO., LTD.
ETU01/X21
|
Card Type |
E1 DSU |
|
Chip Set |
Unidentified |
|
I/O Options |
AC power, E1 network interface via BNC connectors (2), E1 network interface via 15-pin connector, E1 network interface via bantam connectors (2), 15-pin DTE port (X.21) |
|
Wiring Type |
RG-58A/U cable |
|
E1 Transfer Rate |
2.048Mbps |
|
E1 Line Coding |
AMI, HDB3 |
|
Frame type |
CCS, CAS, CRC4 |
|
Data Bus |
External |
|

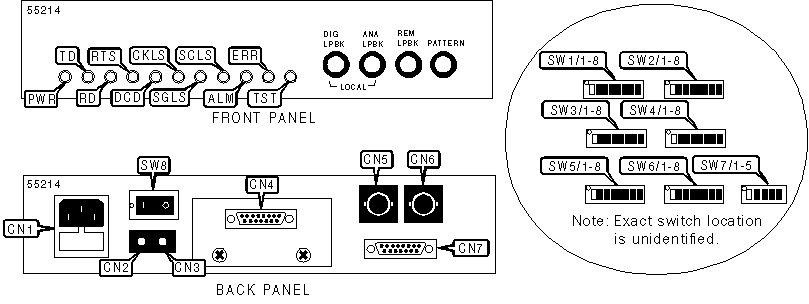

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AC power |
CN1 |
BNC connector - receive |
CN5 |
|
Bantam jack - receive |
CN2 |
BNC connector - transmit |
CN6 |
|
Bantam jack - transmit |
CN3 |
15 pin-network port |
CN7 |
|
15-pin DTE port |
CN4 |
Power switch |
SW8 |
|
Note: RS-449 interface is possible via 37-pin connector on adapter cable | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Framed mode (2048Kbps) |
SW1/1 |
On |
|
Unframed mode(64Kbps x n ) |
SW1/1 |
Off | |
| » |
Time slot 1 enabled |
SW1/2 |
On |
|
Time slot 1 disabled |
SW1/2 |
Off | |
| » |
Time slot 2 enabled |
SW1/3 |
On |
|
Time slot 2 disabled |
SW1/3 |
Off | |
| » |
Time slot 3 enabled |
SW1/4 |
On |
|
Time slot 3 disabled |
SW1/4 |
Off | |
| » |
Time slot 4 enabled |
SW1/5 |
On |
|
Time slot 4 disabled |
SW1/5 |
Off | |
| » |
Time slot 5 disabled |
SW1/6 |
Off |
|
Time slot 5 enabled |
SW1/6 |
On | |
| » |
Time slot 6 disabled |
SW1/7 |
Off |
|
Time slot 6 enabled |
SW1/7 |
On | |
| » |
Time slot 7 disabled |
SW1/8 |
Off |
|
Time slot 7 enabled |
SW1/8 |
On | |
|
USER CONFIGURABLE SETTINGS (CONT.) | |||
|
» Time slot 8 disabled |
SW2/1 |
Off | |
|
Time slot 8 enabled |
SW2/1 |
On | |
| » |
Time slot 9 disabled |
SW2/2 |
Off |
|
Time slot 9 enabled |
SW2/2 |
On | |
| » |
Time slot 10 disabled |
SW2/3 |
Off |
|
Time slot 10 enabled |
SW2/3 |
On | |
| » |
Time slot 11 disabled |
SW2/4 |
Off |
|
Time slot 11 enabled |
SW2/4 |
On | |
| » |
Time slot 12 disabled |
SW2/5 |
Off |
|
Time slot 12 enabled |
SW2/5 |
On | |
| » |
Time slot 13 disabled |
SW2/6 |
Off |
|
Time slot 13 enabled |
SW2/6 |
On | |
| » |
Time slot 14 disabled |
SW2/7 |
Off |
|
Time slot 14 enabled |
SW2/7 |
On | |
| » |
Time slot 15 disabled |
SW2/8 |
Off |
|
Time slot 15 enabled |
SW2/8 |
On | |
| » |
Time slot 16 disabled |
SW3/1 |
Off |
|
Time slot 16 enabled |
SW3/1 |
On | |
| » |
Time slot 17 disabled |
SW3/2 |
Off |
|
Time slot 17 enabled |
SW3/2 |
On | |
| » |
Time slot 18 disabled |
SW3/3 |
Off |
|
Time slot 18 enabled |
SW3/3 |
On | |
| » |
Time slot 19 disabled |
SW3/4 |
Off |
|
Time slot 19 enabled |
SW3/4 |
On | |
| » |
Time slot 20 disabled |
SW3/5 |
Off |
|
Time slot 20 enabled |
SW3/5 |
On | |
| » |
Time slot 21 disabled |
SW3/6 |
Off |
|
Time slot 21 enabled |
SW3/6 |
On | |
| » |
Time slot 22 disabled |
SW3/7 |
Off |
|
Time slot 22 enabled |
SW3/7 |
On | |
| » |
Time slot 23 disabled |
SW3/8 |
Off |
|
Time slot 23 enabled |
SW3/8 |
On | |
| » |
Time slot 24 disabled |
SW4/1 |
Off |
|
Time slot 24 enabled |
SW4/1 |
On | |
| » |
Time slot 25 disabled |
SW4/2 |
Off |
|
Time slot 25 enabled |
SW4/2 |
On | |
| » |
Time slot 26 disabled |
SW4/3 |
Off |
|
Time slot 26 enabled |
SW4/3 |
On | |
| » |
Time slot 27 disabled |
SW4/4 |
Off |
|
Time slot 27 enabled |
SW4/4 |
On | |
| » |
Time slot 28 disabled |
SW4/5 |
Off |
|
Time slot 28 enabled |
SW4/5 |
On | |
| » |
Time slot 29 disabled |
SW4/6 |
Off |
|
Time slot 29 enabled |
SW4/6 |
On | |
| » |
Time slot 30 disabled |
SW4/7 |
Off |
|
Time slot 30 enabled |
SW4/7 |
On | |
| » |
Time slot 31 disabled |
SW4/8 |
Off |
|
Time slot 31 enabled |
SW4/8 |
On | |
|
USER CONFIGURABLE SETTINGS (CONT.) | |||
|
» HDB3 line code enabled |
SW5/4 |
Off | |
|
AMI line code enabled |
SW5/4 |
On | |
| » |
CAS/PCM31 frame mode enabled |
SW5/5 |
Off |
|
CAS/PCM30 frame mode enabled |
SW5/5 |
On | |
| » |
CRC4 diabled |
SW5/6 |
Off |
|
CRC4 enabled |
SW5/6 |
On | |
| » |
Unused timslot - Flag (0x7E) |
SW5/7 |
Off |
|
Unused timeslot - Mark (0xFF) |
SW5/7 |
On | |
| » |
64Kbps x n data rate enabled |
SW5/8 |
Off |
|
56Kbps x n data rate enabled |
SW5/8 |
On | |
| » |
Jitter attenuator enabled |
SW6/1 |
On |
|
Jitter attenuator disabled |
SW6/1 |
Off | |
| » |
Jitter on received side |
SW6/2 |
Off |
|
Jitter on transmitted side |
SW6/2 |
On | |
| » |
Jitter buffer depth set at 32 bits |
SW6/3 |
Off |
|
Jitter buffer depth set at 128 bits |
SW6/3 |
On | |
| » |
Cascading function disabled |
SW6/4 |
Off |
|
Cascading function enabled |
SW6/4 |
On | |
| » |
Passthrough disabled on time slot 16 |
SW6/5 |
Off |
|
Passthrough enabled on time slot 16 |
SW6/5 |
On | |
| » |
Factory configured - do not alter |
SW6/6 |
Unidentified |
| » |
Data port loopback disabled |
SW6/7 |
Off |
|
Data port loopback enabled |
SW6/7 |
On | |
| » |
Front panel loopback enabled |
SW6/8 |
On |
|
Front panel loopback disabled |
SW6/8 |
Off | |
|
CLOCK MODE | |||||||
|
Mode # |
E1 Transmit |
Data Port Receive |
Data Port Transmit |
SW5/1 |
SW5/2 |
SW5/3 | |
| » |
0 (DCE1) |
Recover |
Recover |
Recover |
Off |
Off |
Off |
|
1 (DCE2) |
Internal |
Internal |
Internal |
On |
Off |
Off | |
|
2 (DTE1) |
External |
Recover |
External |
Off |
On |
Off | |
|
3 (DTE2) |
External |
External |
External |
On |
On |
Off | |
|
4 (DTE2) |
External |
External |
External |
Off |
Off |
On | |
|
E1 LINE IMPEDANCE | ||||||
|
Setting |
SW7/1 |
SW7/2 |
SW7/3 |
SW7/4 |
SW7/5 | |
| » |
75 Ohm operation |
Off |
Off |
Off |
Off |
Off |
|
120 Ohm operation |
On |
On |
On |
On |
On | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
PWR |
Green |
On |
Power is on |
|
PWR |
Green |
Off |
Power is off |
|
TD |
Yellow |
On |
Data is being transmitted from the data port (CN4) |
|
TD |
Yellow |
Blinking |
Space is being transmitted from the data port (CN4) |
|
TD |
Yellow |
Off |
Data is not being transmitted from the data port (CN4) |
|
RD |
Yellow |
On |
Data is being received at the data port (CN4) |
|
RD |
Yellow |
Blinking |
Space is being received at the data port (CN4) |
|
RD |
Yellow |
Off |
Data is not being recieved at the data port (CN4) |
|
RTS |
Yellow |
On |
Sending device is enabled |
|
RTS |
Yellow |
Off |
Sending device is disabled |
|
DCD |
Yellow |
On |
Data carrier present |
|
DCD |
Yellow |
Off |
Data carrier not present. Connection not established |
|
CKLS |
Red |
On |
Transmit clock loss detected |
|
CKLS |
Red |
Off |
Transmit clock loss not detected |
|
SGLS |
Red |
On |
Receive signal loss detected |
|
SGLS |
Red |
Off |
Receive signal loss not detected |
|
SCLS |
Red |
On |
Loss of received frame syncronization detected |
|
SCLS |
Red |
Off |
Loss of received frame syncronization not detected |
|
ALM |
Red |
On |
Alarm condition detected on network |
|
ALM |
Red |
Off |
Alarm condition not detected on network |
|
ER |
Red |
On |
Bit errors detected in the 511 test pattern |
|
ER |
Red |
Off |
Bits errors not detected in 511 test pattern |
|
TST |
Red |
On |
Device is conducting a loopback or pattern test |
|
TST |
Red |
Off |
Device is not conducting a loopback or pattern test |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Timeslot switches are ignored in unframe mode. In framed mode, clock rate is determined by the number of timeslots enabled ( n ). In CAS mode, SW3/1 must be set to off position or a loopback test will occur. Cascading units must not be assigned identical or overlapping timeslots. |
