DIGICOM SPA
SNM70
|
Card Type |
Modem |
|
Chip Set |
Unidentified |
|
I/O Options |
Power, ISDN interface via RJ-45 connector (2), 25-pin serial port (2) |
|
Maximum Modem Rate |
56Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Modulation Protocol |
ITU-T V.21, V.22, V.22bis,V.23, V.32, V.32bis, V.34, V.34, K56flex |
|
Fax Modulation Protocol |
V.17, V.29, V.27 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|
Fax Class |
Class I |
|
Data Bus |
External |
|

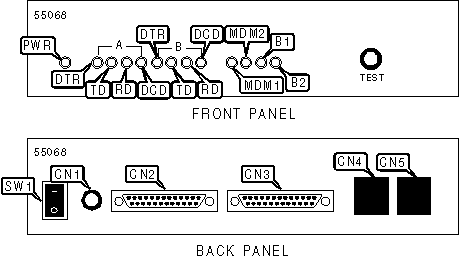

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Power |
CN1 |
ISDN interface via RJ-45 connector |
CN4 | |||
|
25-pin serial port 1 |
CN2 |
ISDN interface via RJ-45 connector |
CN5 | |||
|
25-pin serial port 2 |
CN3 |
Power switch |
SW1 | |||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
PWR |
Green |
On |
Power is on |
|
PWR |
Green |
Off |
Power is off |
|
DTR |
Red |
On |
Computer is ready |
|
DTR |
Red |
Off |
Computer is not ready |
|
TD |
Red |
On |
Modem is transmitting data |
|
TD |
Red |
Off |
Modem is not transmitting data |
|
CTS |
Red |
On |
CTS signal is high. TA ready to send data |
|
CTS |
Red |
Off |
CTS signal is low |
|
RD |
Red |
On |
Modem is receiving data |
|
RD |
Red |
Off |
Modem is not receiving data |
|
DCD |
Red |
On |
Data carrier present |
|
DCD |
Red |
Off |
Data carrier not present. Connection not established |
|
MDM1 |
Red |
On |
Network link is active on modem port 1 |
|
MDM1 |
Red |
Off |
Network link is broken on modem port 1 |
|
MDM2 |
Red |
On |
Network link is active on modem port 2 |
|
MDM2 |
Red |
Off |
Network link is broken on modem port 2 |
|
B1 |
Red |
On |
B1 channel in use |
|
B1 |
Red |
Off |
B1 channel inactive |
|
B1 |
Red |
Blinking |
B1 channel busy |
|
B2 |
Red |
On |
B2 channel in use |
|
B2 |
Red |
Off |
B2 channel inactive |
|
B2 |
Red |
Blinking |
B2 channel busy |
|
SUPPORTED COMMAND SET |
|
Basic AT Commands |
|
AT, A/ |
|
A, E, H, O, Q, V, W, X, Y, Z |
|
&C, &T, &W, &Y, &Z |
|
Extended AT commands |
|
\A, \B, \G, \K, \N |
|
%C, %E, %L, %Q |
|
S Registers |
|
S0, S1, S2, S3, S4, S5, S6 ,S7, S8, S9, S10, S12, S18, S30, S32, S33, S95 |
|
Special commands |
|
+MS |
|
Note: See MHI Help File for full command documentation. |
PROPRIETARY AT COMMAND SET
|
AUTO-MODE DETECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Nn [cmds] |
|
Description: |
Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed. |
|
Command |
Function |
|
N0 |
Auto-mode detection disabled |
|
N1 |
Auto-mode detection enabled |
|
COMMUNICATIONS MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Qn [cmds] |
|
Description: |
Selects communications mode options |
|
Command |
Mode |
|
&Q0 |
Asynchronous mode, serial port speed follows connect speed. |
|
í &Q5 |
Error correction mode |
|
&Q6 |
Buffered asynchronous mode |
|
DATA SET READY (DSR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Sn [cmds] |
|
Description: |
Selects DSR options |
|
Command |
Function |
|
í &S0 |
DSR forced high |
|
&S1 |
DSR high only while modem is handshaking or connected |
|
DATA TERMINAL READY (DTR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Dn [cmds] |
|
Description: |
Selects modem response to DTR |
|
Command |
Function |
|
&D0 |
DTR override |
|
&D1 |
DTR toggle causes online command mode |
|
í &D2 |
Normal DTR operations |
|
&D3 |
Resets on DTR toggle |
|
DIAL | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] D<#> [cmds] |
|
Description: |
Dials telephone number according to any modifiers included in the string |
|
Note: |
Any combination of modifiers can be used to produce the desired dial functions in sequence. |
|
Command |
Function |
|
DL |
Re-dial last number |
|
DS=n |
Dial stored telephone number n |
|
FACTORY DEFAULT PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &F [cmds] |
|
Description: |
Sets values in active profile to values found in the default profile |
|
Command |
Function |
|
&F0 |
Load active profile the factory profile 0 |
|
&F1 |
Load active profile the factory profile 1 |
|
FLOW CONTROL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Kn [cmds] |
|
Description: |
Enables flow control options |
|
Command |
Function |
|
&K0 |
Flow control disabled |
|
í &K3 |
RTS/CTS flow control enabled |
|
&K4 |
XON/XOFF flow control enabled |
|
&K5 |
Transparent XON/XOFF flow control enabled |
|
&K6 |
RTS/CTS and XON/XOFF flow control enabled |
|
GUARD TONE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Gn [cmds] |
|
Description: |
Commands the modem to transmit a guard tone in V.22/V.22bis |
|
Command |
Function |
|
í &G0 |
Guard tone disabled |
|
&G2 |
1800Hz guard tone enabled |
|
REPORT INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] In [cmds] |
|
Description: |
Displays information requested |
|
Command |
Function |
|
I0 |
Reports maximum line speed |
|
I1 |
Reports product type |
|
I2 |
Tests and reports ROM checksum |
|
I3 |
Reports product name |
|
I4 |
Reports firmware release |
|
I5 |
Reports active Country code |
|
STORE CALLER ID NUMBER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Z4=n (phone #) |
|
Description: |
Stores telephone number n for the caller ID function. &Z4=? displays the stored telephone number. |
|
STORE MULTISUBSCRIBER NUMBER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Z5=n (phone # & modifiers) |
|
Description: |
Stores own telephone number n for the MSN. &Z5=? Displays the stored multisubscriber number. |
|
STORE SUBADDRESS NUMBER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Z6=n (subaddress field) |
|
Description: |
Stores subaddress field with a maximum of four numbers. &Z5=? displays the stored subaddress field. |
|
TEI DEFINITION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Z7=nn [cmds] |
|
Range: |
00-63, 99 |
|
Unit: |
ASCII |
|
Description: |
Sets TEI to a point to point value. 99 causes TEI to be variable. |
EXTENDED AT COMMAND SET
|
FLASH EPROM CODE UPGRADE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] %Fn [cmds] |
|
Description: |
Initiates Flash EPROM code upgrade |
SPECIAL COMMANDS
|
CALLER ID | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] *In [cmds] |
|
Description: |
Enables/disables originate call identification function |
|
Command |
Function |
|
*I0 |
Caller ID disabled |
|
*I1 |
Caller ID enabled |
|
MULTISUBSCRIBER NUMBER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] *Mn [cmds] |
|
Description: |
Permits the association of a maximum of 8 consecutive numbers to a BRI access of the national plan number |
|
Command |
Function |
|
í *M0 |
MSN disabled |
|
*M1 |
MSN enabled |
|
PORT SELECTOR | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] *Wn [cmds] |
|
Description: |
Selects the serial port activated for incoming call |
|
Command |
Function |
|
*W0 |
If both B channels are available, the call is addressed to serial port 2. If only B channel 2 is available, the call is addressed to serial port 1 |
|
*W1 |
Serial port is determined by subaddress |
|
*W2 |
Serial port is determined by subaddress number |
|
SUBADDRESS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] *Sn [cmds] |
|
Description: |
Identifies address of called modem |
|
Command |
Function |
|
í *S0 |
Subaddress function disabled |
|
*S1 |
Subaddress function enabled |
S(status) REGISTERS
|
TRANSMISSION LEVEL - FAX | |
|
Type: |
Register |
|
Format: |
AT [cmds] S92=n [cmds] |
|
Range: |
3-15 |
|
Unit: |
-1 dBm |
|
Description: |
Sets the signal level for transmission while in fax mode |
|
TRANSMISSION LEVEL - LEASED-LINE | |
|
Type |
Register or Configuration |
|
Format |
AT [cmds] S91=n [cmds] |
|
Range |
3-15 |
|
Unit |
-1 dBm |
|
Description |
Sets the signal level for transmission over leased-lines |
