Card Type	Fax, Modem (asynchronous)
Chip Set	Rockwell
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	16-bit ISA
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 Rockwell V.FC
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis

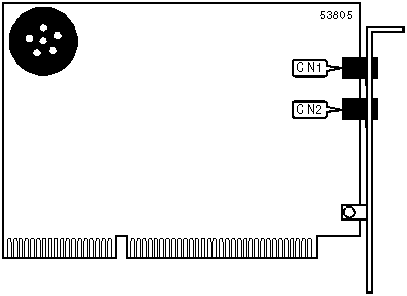

CONNECTIONS
Function	Label		Function		Label
Line out/in - Unidentified		CN1		Line in/out - Unidentified		CN2

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, ‘comma’, A/

A, C, D, E, F, H, L, N, O, P, Q, R, S, T, U, V, W, Y, Z

&A, &B, &C, &G, &J, &K, &L, &P, &S, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

\C, \E, \O, \Q, \T, \U, \V, \X, \Y, \Z

%A, %TT

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S18, S25, S26,

S38, S46, S48, S82, S86, S90, S91, S92, S95, S99, S108, S109, S110

Special Commands

"H, "N, "O,-J, )M, +MS?

Note: See MHI Help File for full command documentation.
