DIALOGIC CORPORATION
GAMMAFAX CP-4/SC
|
Card Type |
Fax, telephony |
|
Processor |
80C188 (4) |
|
Processor Speed |
16MHz |
|
Chipset |
Rockwell 14.4EFX |
|
Maximum Onboard Memory |
2MB DRAM (512KB per channel) |
|
I/O Options |
AEB bus, PEB/SCbus connector |
|
Maximum Fax Rate |
14.4Kbps x 4 |
|
Fax Modulation |
ITU-T V.17, V.27ter, V.29, V.33 |
|
Fax Class |
N/A |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full height, full length |
|

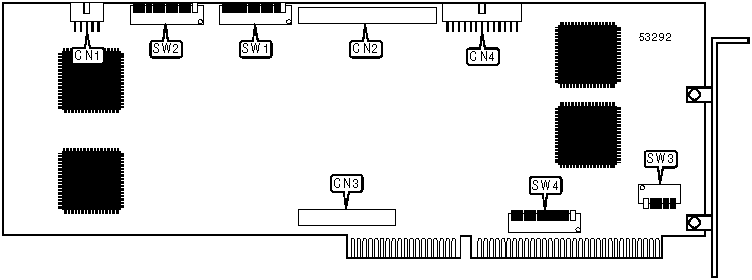

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unidentified |
CN1 |
Header for daughterboard CN3 |
CN3 |
|
Header for daughterboard CN2 |
CN2 |
AEB bus |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
Factory configured - do not alter |
SW1/2 |
Off |
| » |
Factory configured - do not alter |
SW1/3 |
On |
| » |
Factory configured - do not alter |
SW1/4 |
Off |
| » |
Factory configured - do not alter |
SW1/5 |
On |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
| » |
Factory configured - do not alter |
SW1/7 |
On |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
| » |
Factory configured - do not alter |
SW1/9 |
Off |
| » |
Factory configured - do not alter |
SW1/10 |
Off |
| » |
Factory configured - do not alter |
SW2/1 |
Off |
| » |
Factory configured - do not alter |
SW2/2 |
Off |
| » |
Factory configured - do not alter |
SW2/3 |
Off |
| » |
Factory configured - do not alter |
SW2/4 |
Off |
|
USER CONFIGURABLE SETTINGS (CON'T) | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW2/5 |
Off |
| » |
Factory configured - do not alter |
SW2/6 |
Off |
| » |
Factory configured - do not alter |
SW2/7 |
Off |
| » |
Factory configured - do not alter |
SW2/8 |
Off |
| » |
Factory configured - do not alter |
SW2/9 |
Off |
| » |
Factory configured - do not alter |
SW2/10 |
Off |
| » |
Factory configured - do not alter |
SW3/5 |
Off |
| » |
Factory configured - do not alter |
SW4/1 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/2 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/3 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/4 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/5 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/6 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/7 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/8 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/9 |
Unidentified |
| » |
Factory configured - do not alter |
SW4/10 |
Unidentified |
|
BASE I/O ADDRESS SELECTION | ||||||||
|
Line 1 |
Line 2 |
Line 3 |
Line 4 |
Channels |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
350h |
360h |
370h |
250h |
0 - 3 |
On |
On |
On |
On |
|
260h |
270h |
150h |
160h |
4 - 7 |
Off |
On |
On |
On |
|
100h |
104h |
108h |
10Ch |
8 - 11 |
On |
Off |
On |
On |
|
110h |
114h |
118h |
11Ch |
12 - 15 |
Off |
Off |
On |
On |
|
280h |
284h |
288h |
28Ch |
16 - 19 |
On |
On |
Off |
On |
|
290h |
294h |
298h |
29Ch |
20 - 23 |
Off |
On |
Off |
On |
|
120h |
124h |
128h |
12Ch |
24 - 27 |
On |
Off |
Off |
On |
|
130h |
134h |
138h |
13Ch |
28 - 31 |
Off |
Off |
Off |
On |
|
180h |
184h |
188h |
18Ch |
32 - 35 |
On |
On |
On |
Off |
|
190h |
194h |
198h |
19Ch |
36 - 39 |
Off |
On |
On |
Off |
|
1A0h |
1A4h |
1A8h |
1ACh |
40 - 43 |
On |
Off |
On |
Off |
|
1B0h |
1B4h |
1B8h |
1BCh |
44 - 47 |
Off |
Off |
On |
Off |
|
1C0h |
1C4h |
1C8h |
1CCh |
48 - 51 |
On |
On |
Off |
Off |
|
1D0h |
1D4h |
1D8h |
1DCh |
52 - 55 |
Off |
On |
Off |
Off |
|
1E0h |
1E4h |
1E8h |
1ECh |
56 - 59 |
On |
Off |
Off |
Off |
|
254h |
258h |
25Ch |
264h |
60 - 63 |
Off |
Off |
Off |
Off |
|

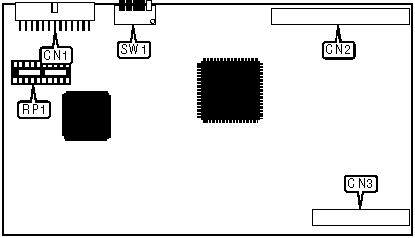

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
SCBus/PEB connector |
CN1 |
Header to main board CN3 |
CN3 |
|
Header to main board CN2 |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
PEB bus is terminated |
RP1 |
Installed |
|
PEB bus is not terminated |
RP1 |
Not installed |
|
Board is not attached to LSI-80 card |
SW1/2 |
On |
|
Board is attached to LSI-80 card |
SW1/2 |
Off |
|
Board will use mu-law compression |
SW1/5 |
On |
|
Board will use A-law compression |
SW1/5 |
Off |
|
BUS TYPE SELECTION | ||
|
Setting |
SW1/1 |
SW1/3 |
|
PEB bus |
On |
On |
|
SCBus |
Off |
Off |
|
SIGNALING TYPE | ||
|
Setting |
SW1/4 |
SW1/6 |
|
All signaling disabled |
N/A |
Off |
|
Raw-bit signaling disabled |
Off |
On |
|
Raw-bit signaling enabled when applicable |
On |
On |
